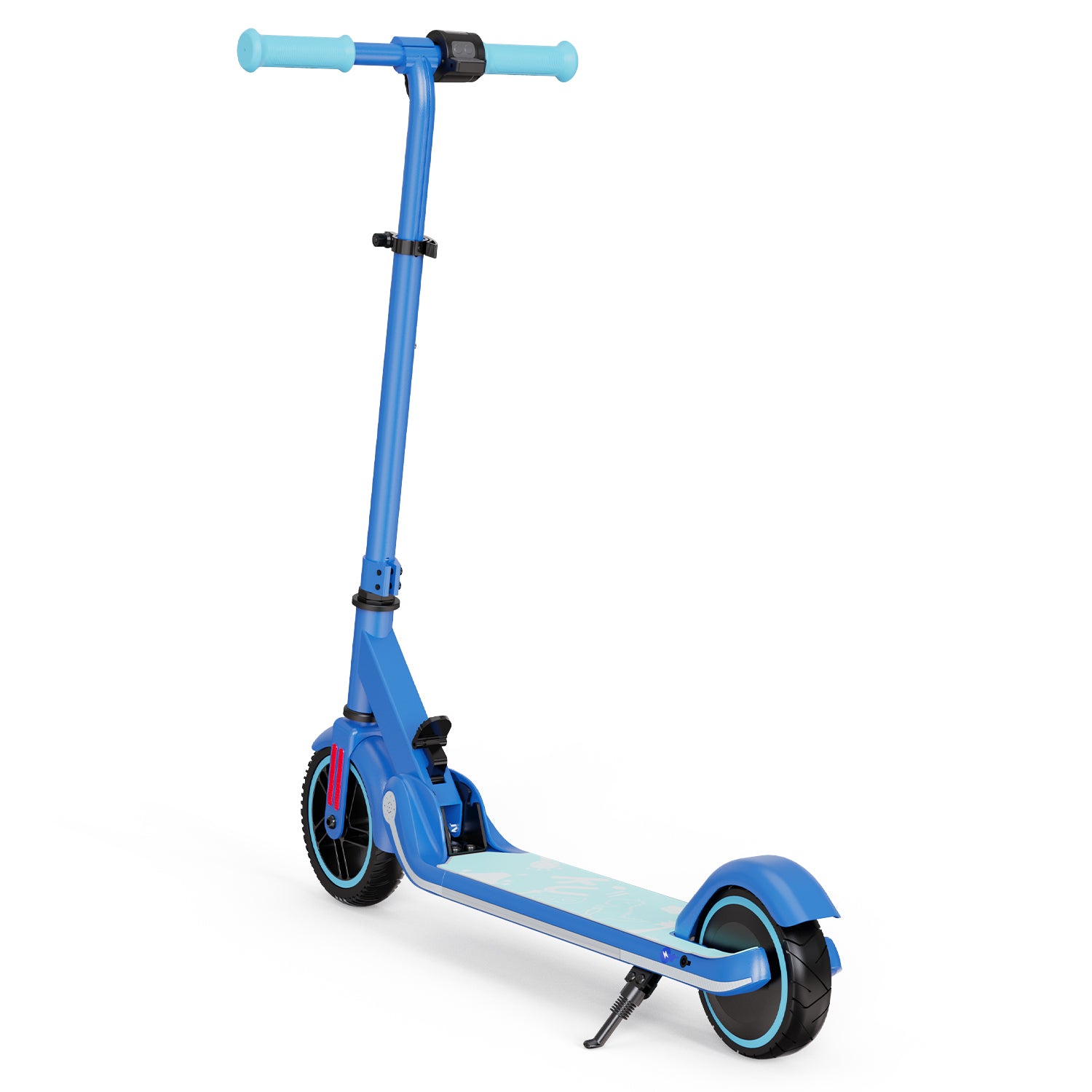

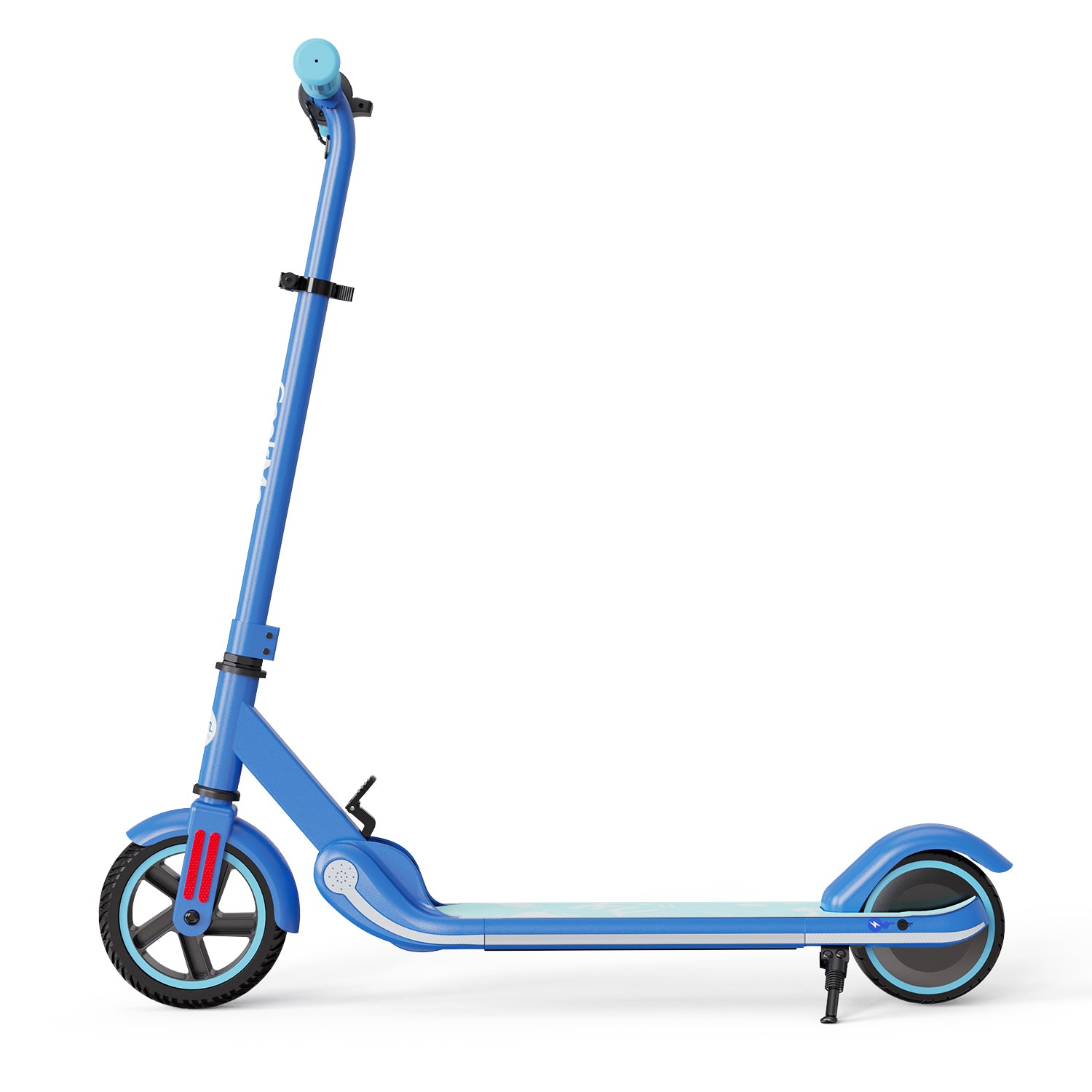

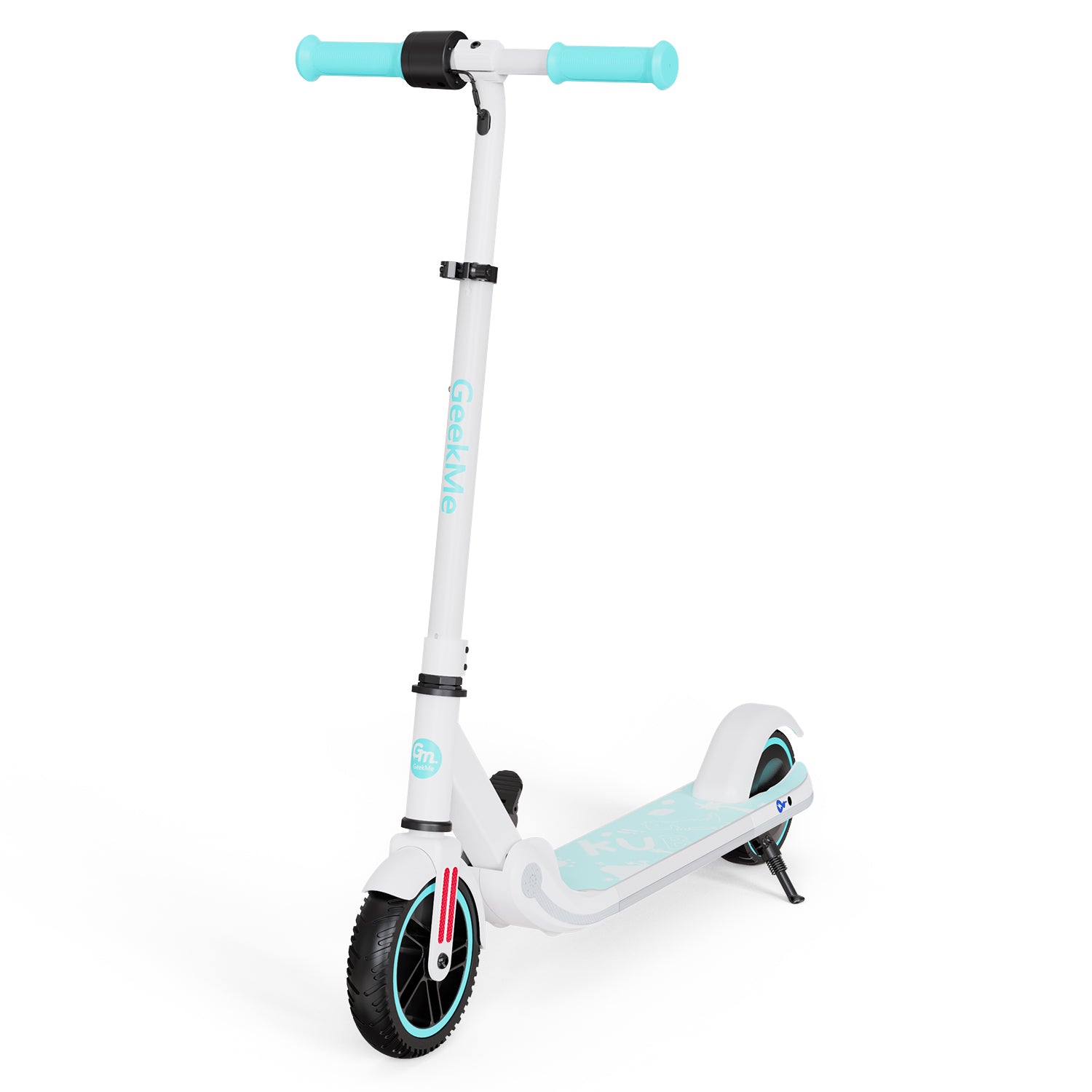

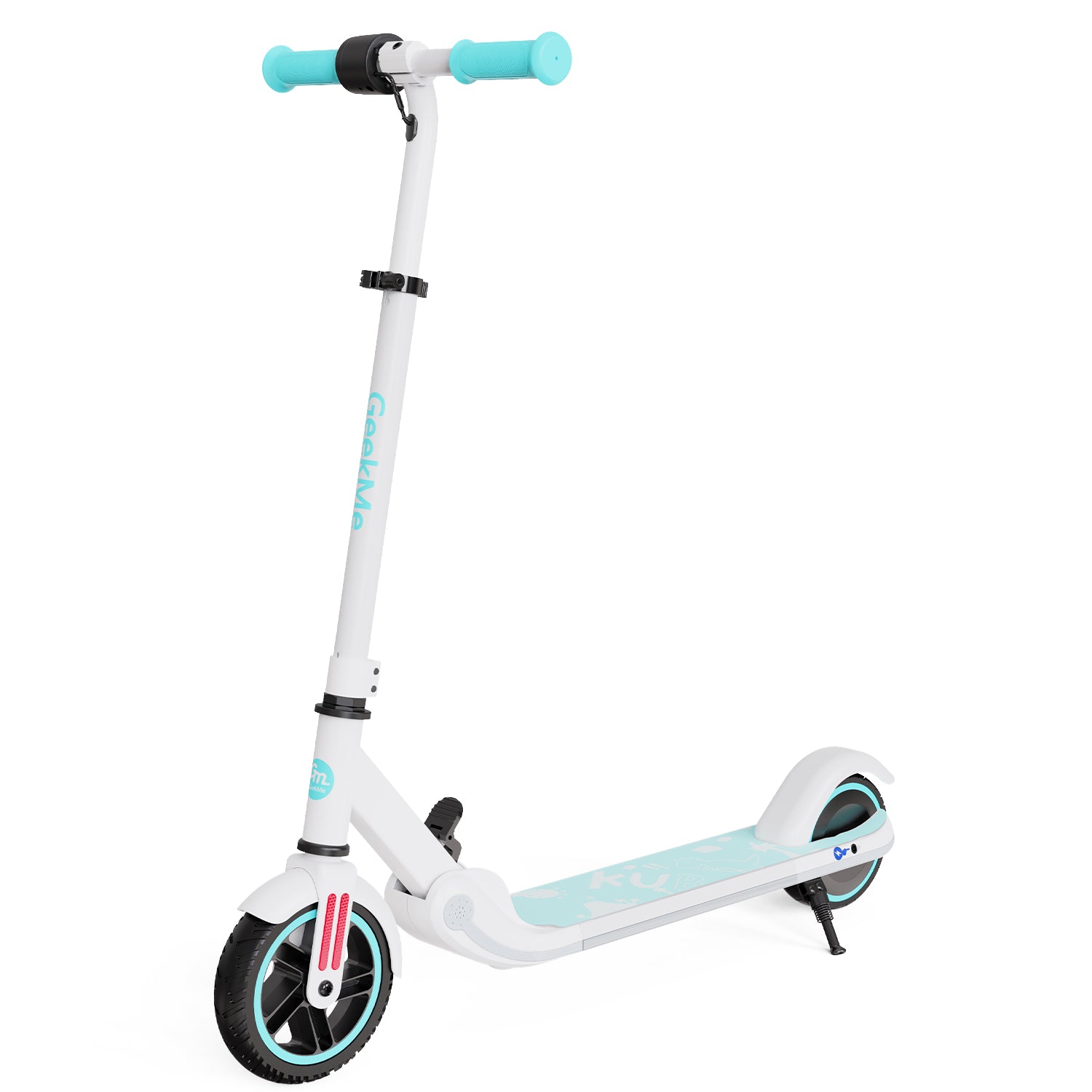

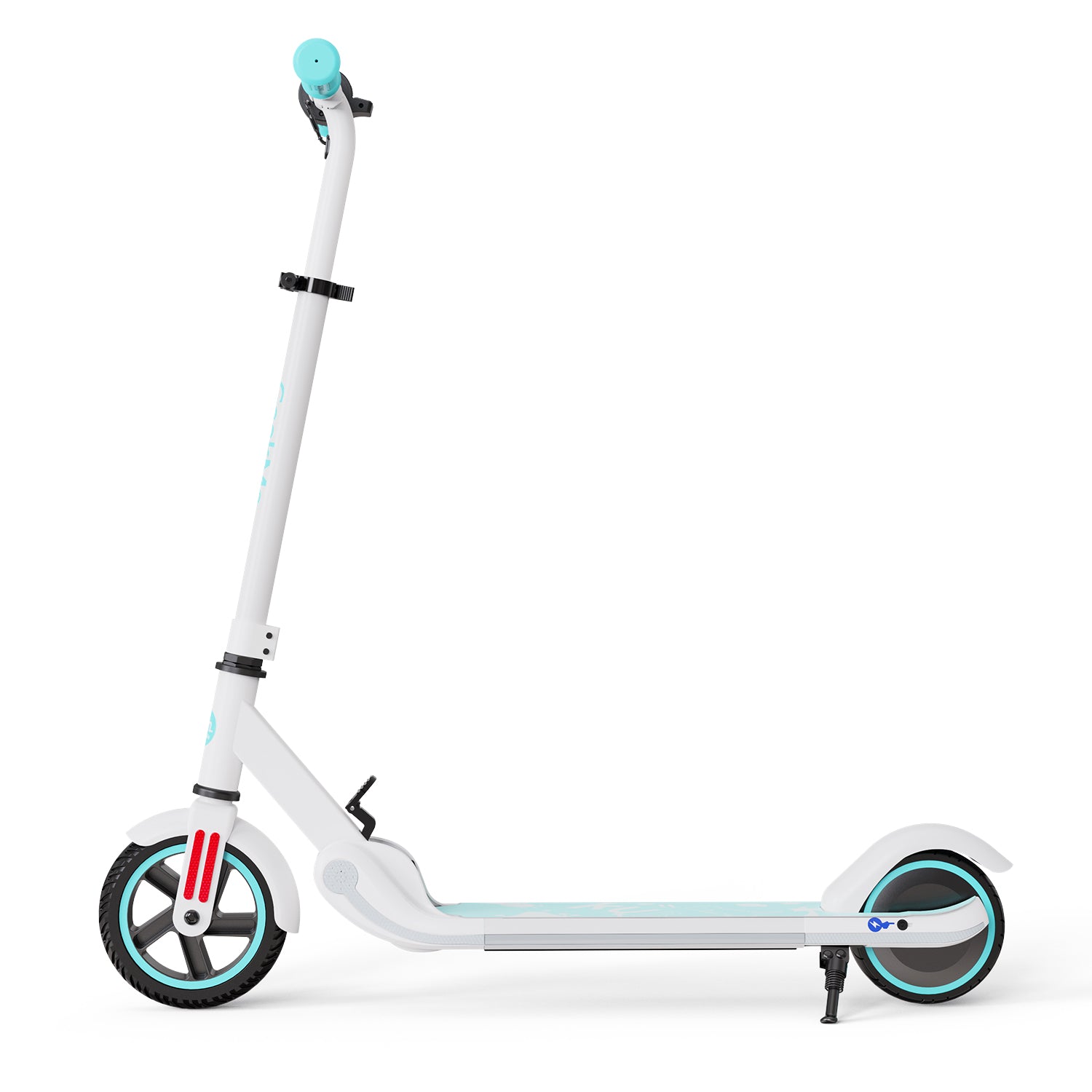

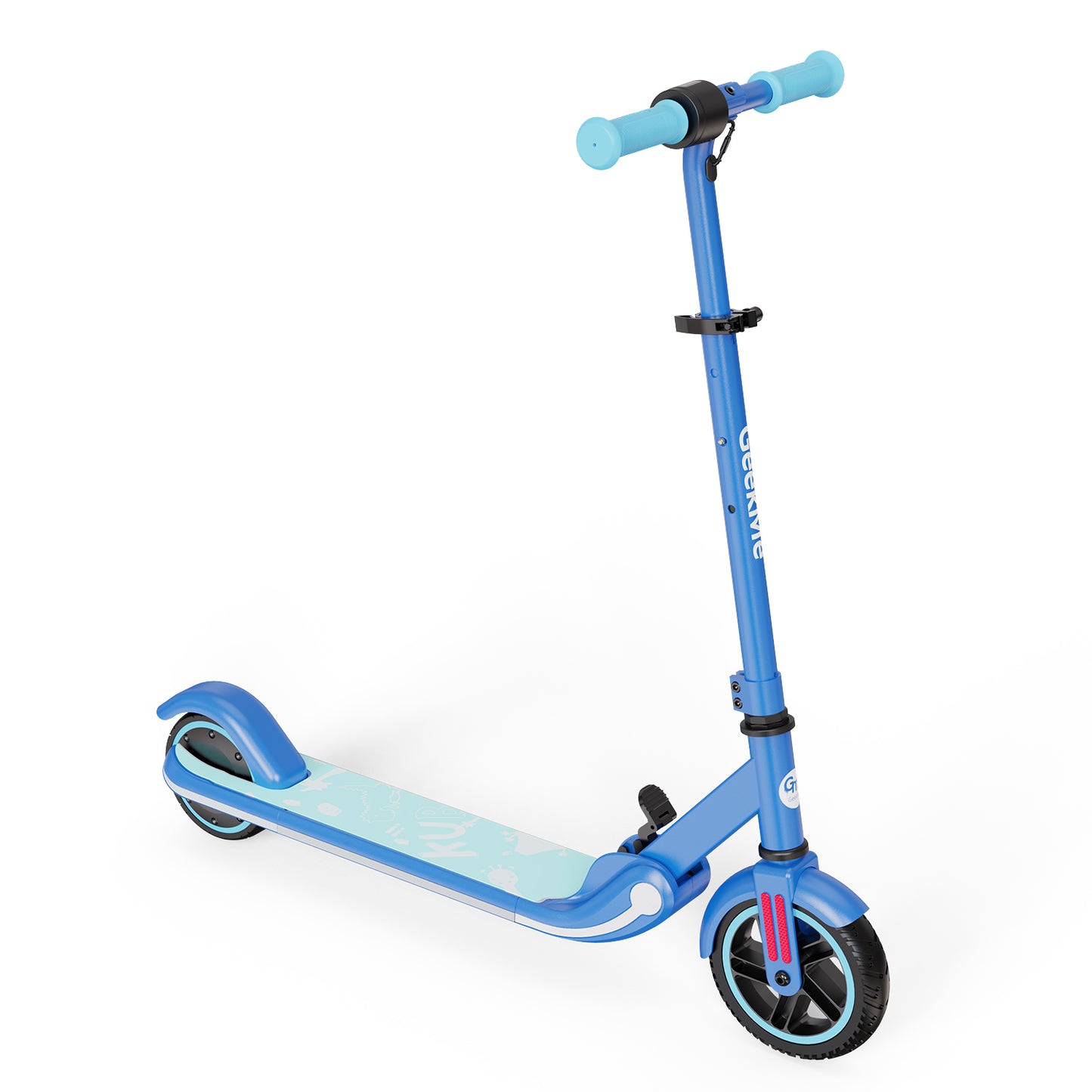

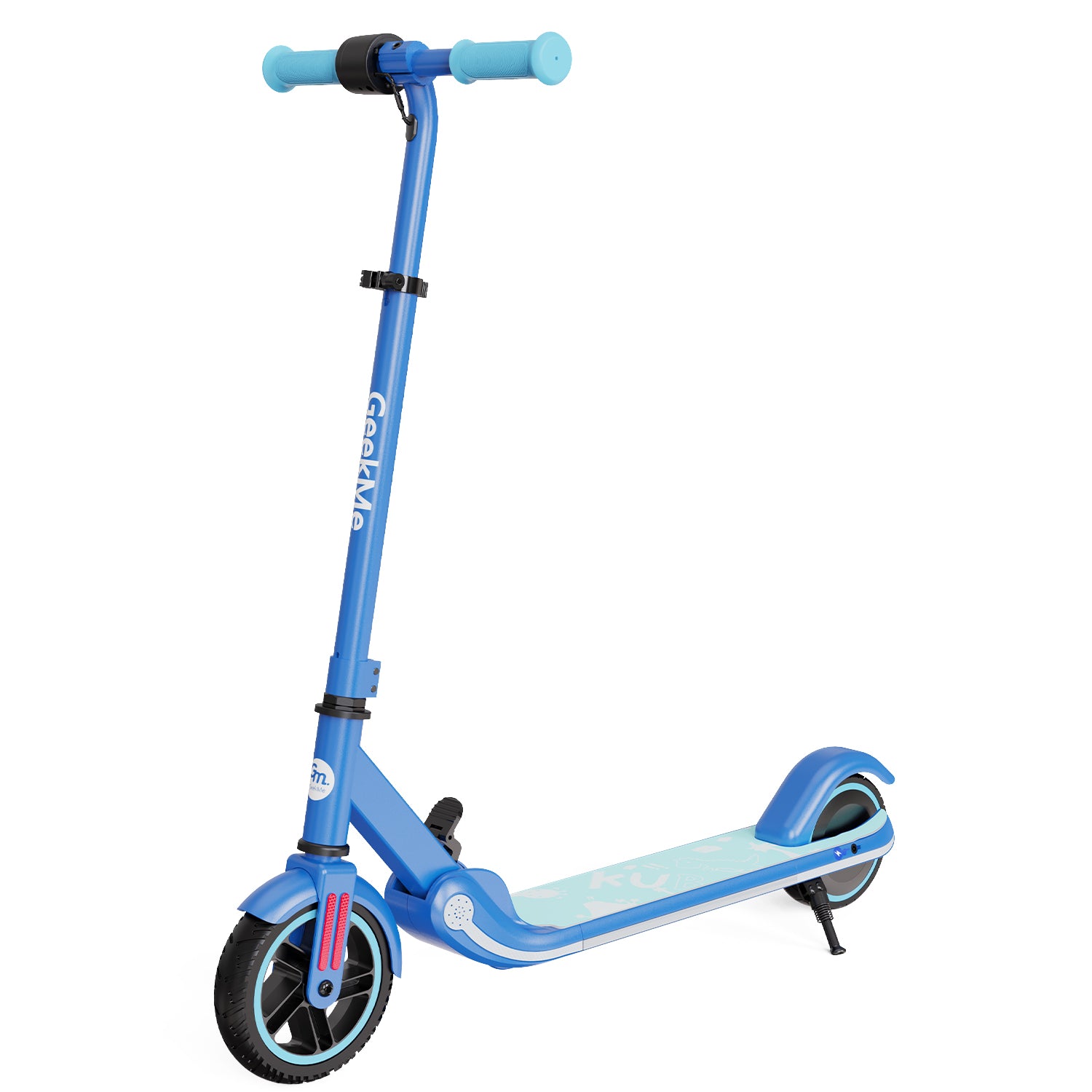

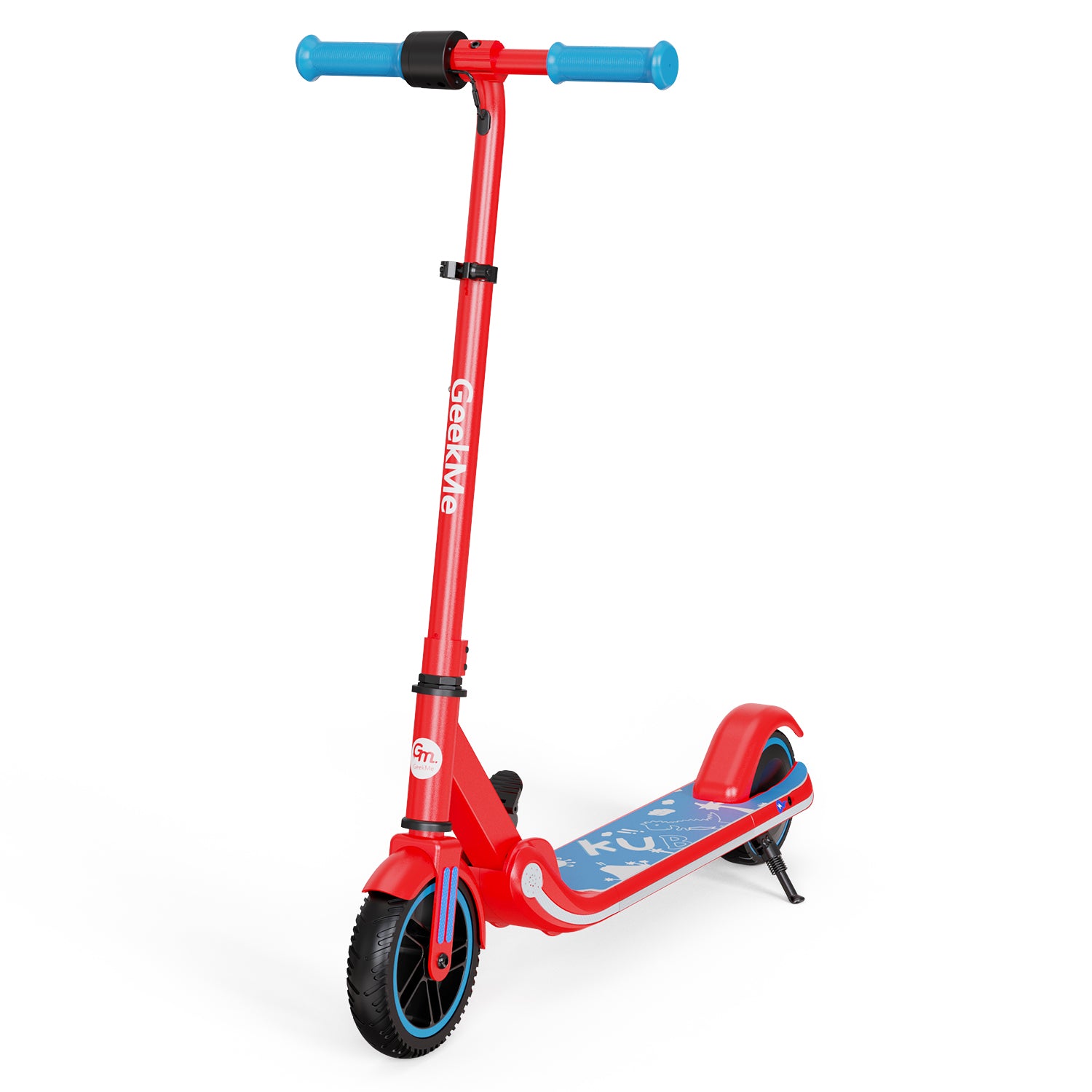

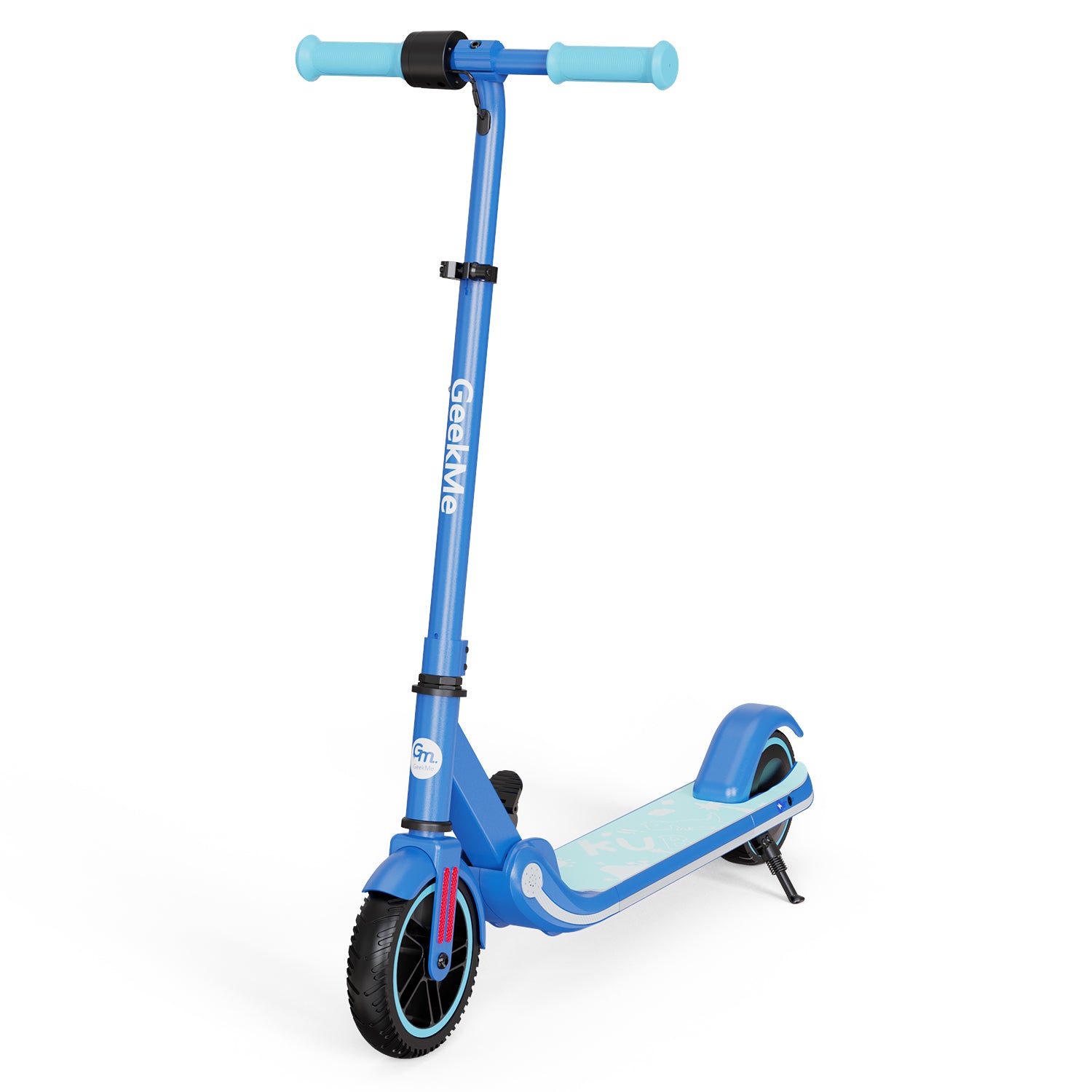

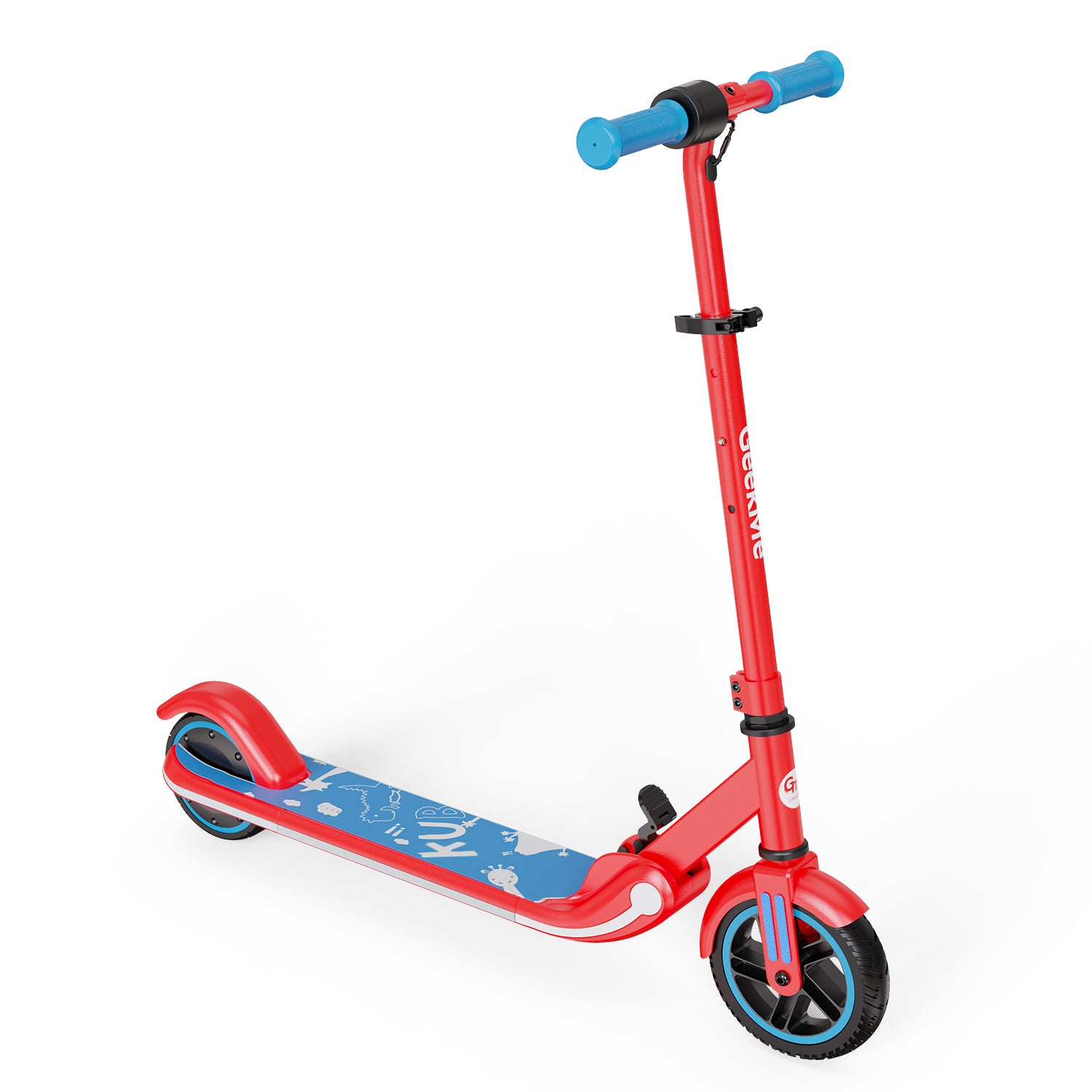

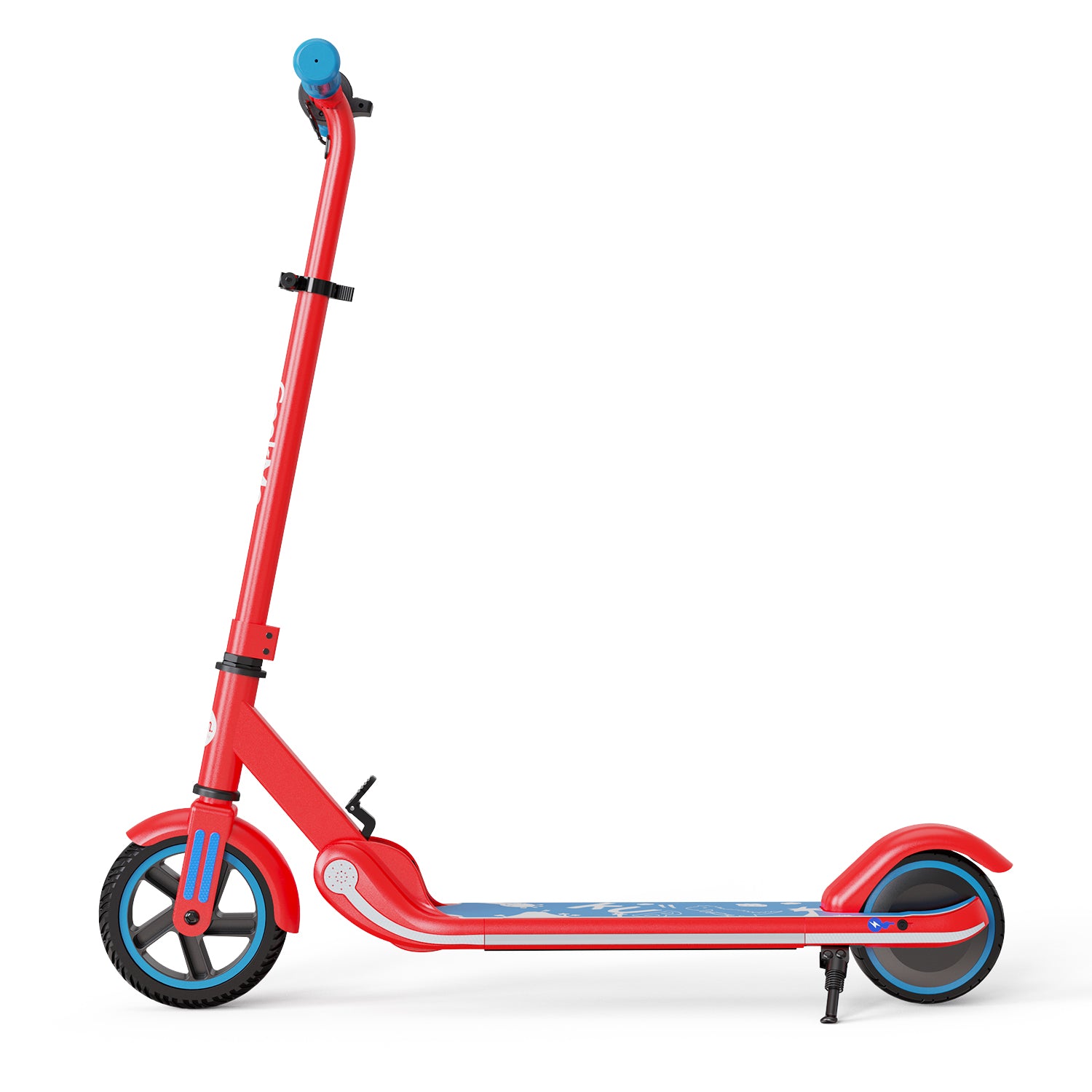

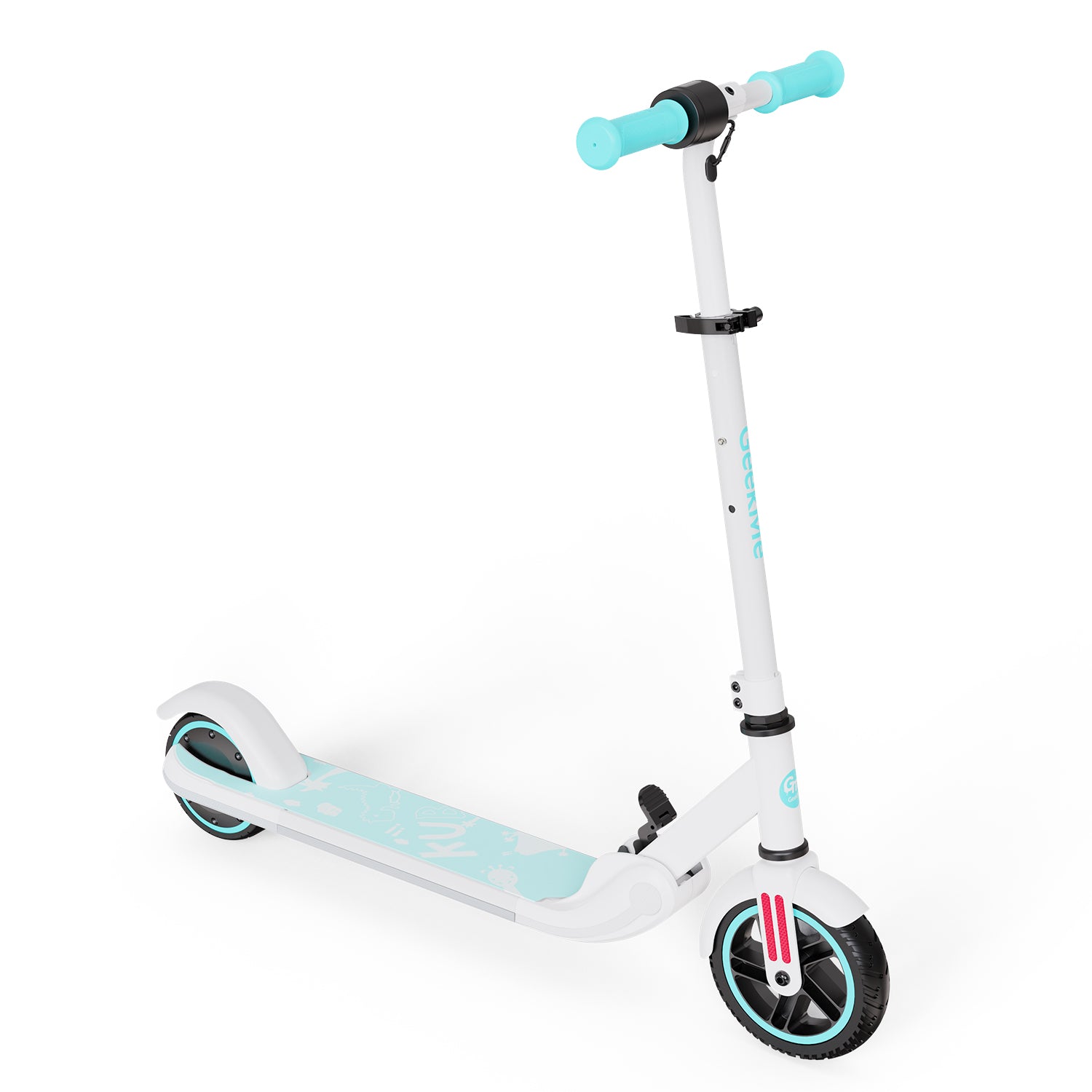

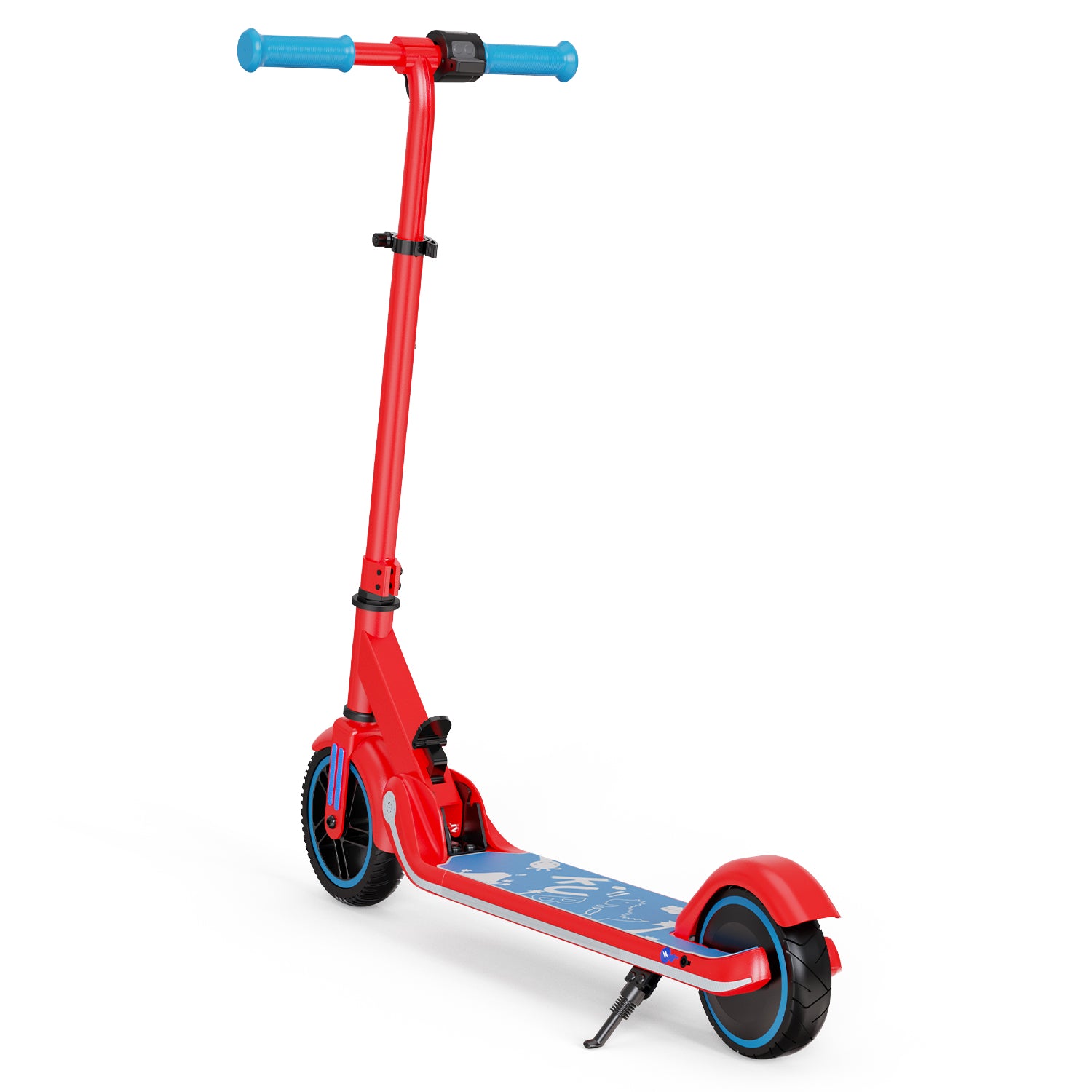

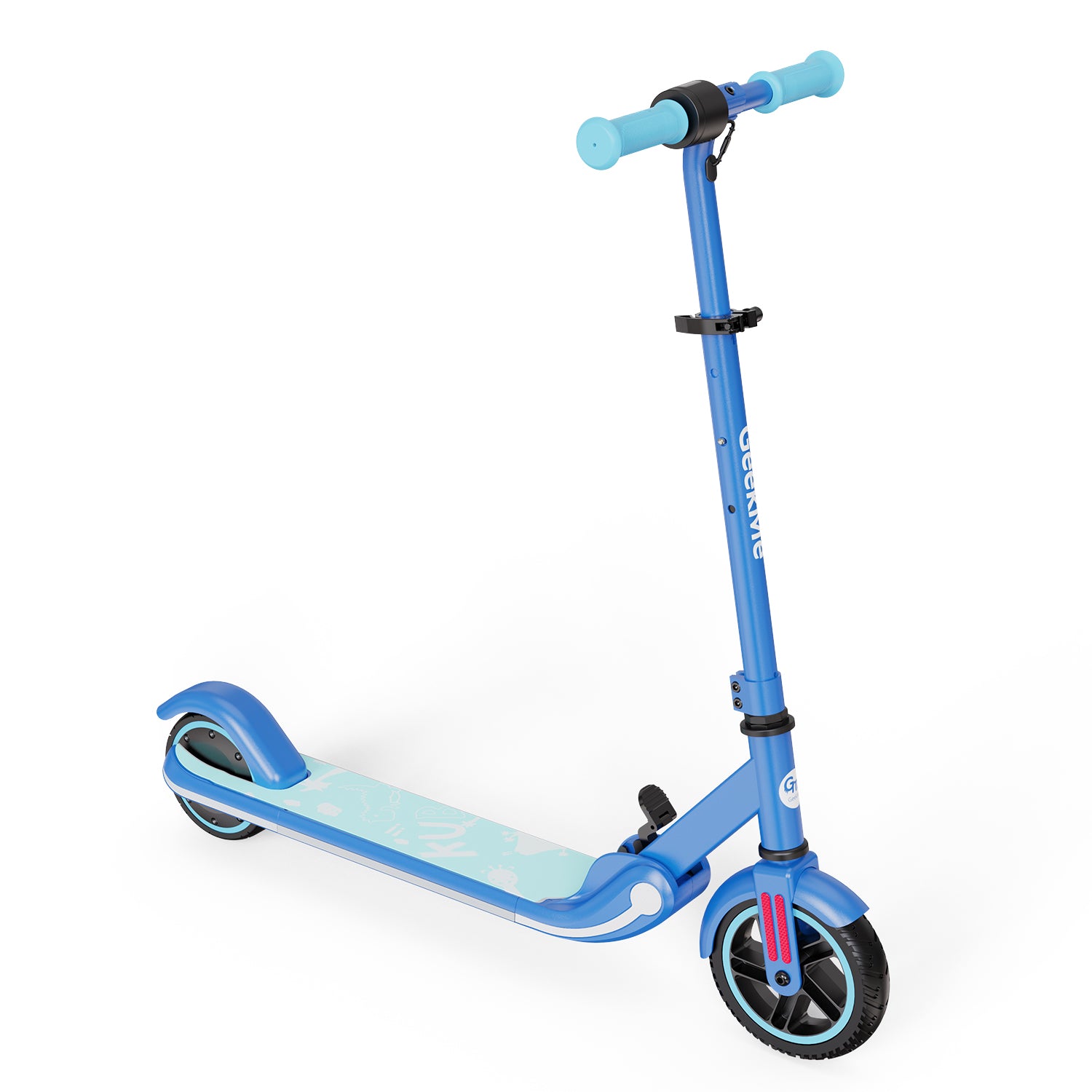

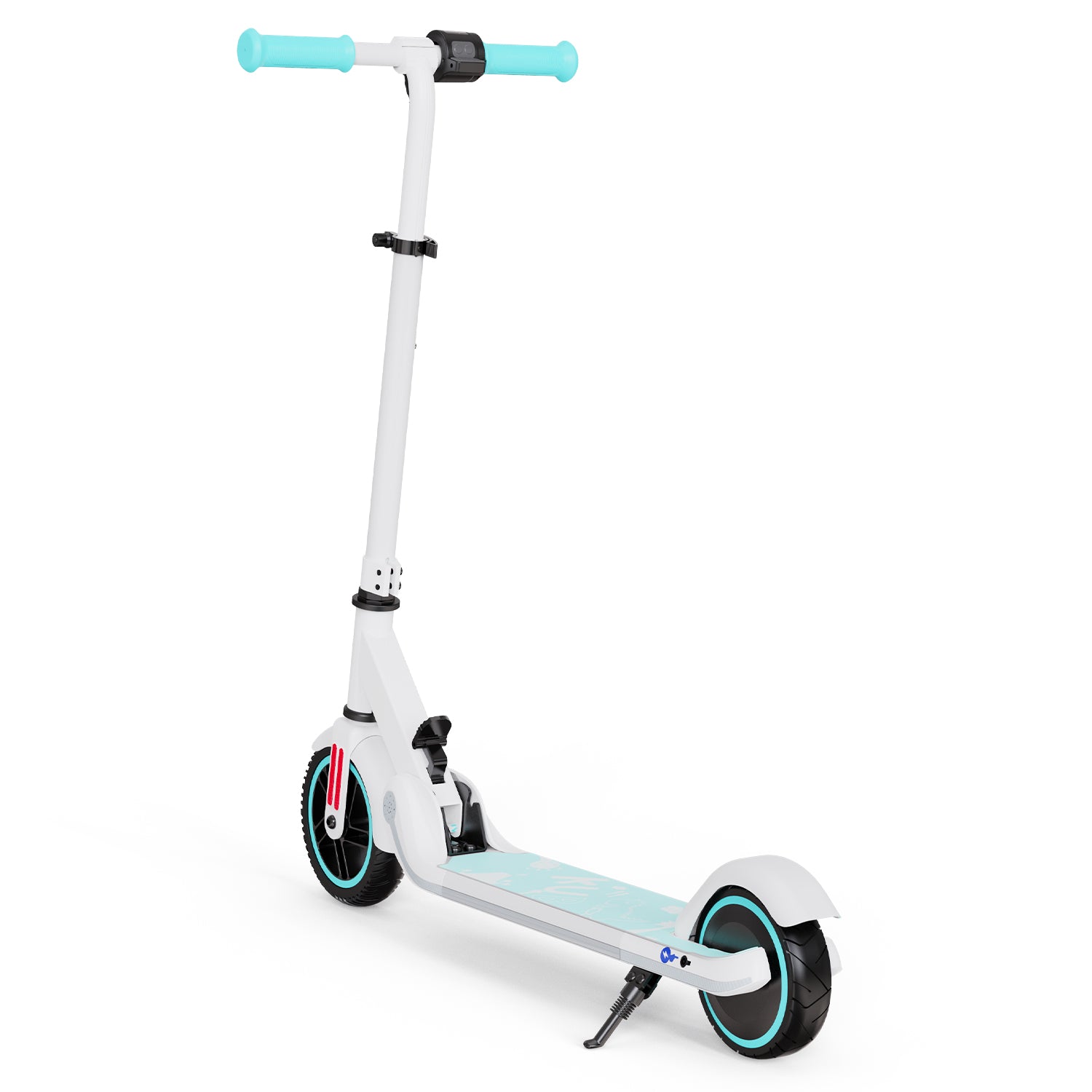

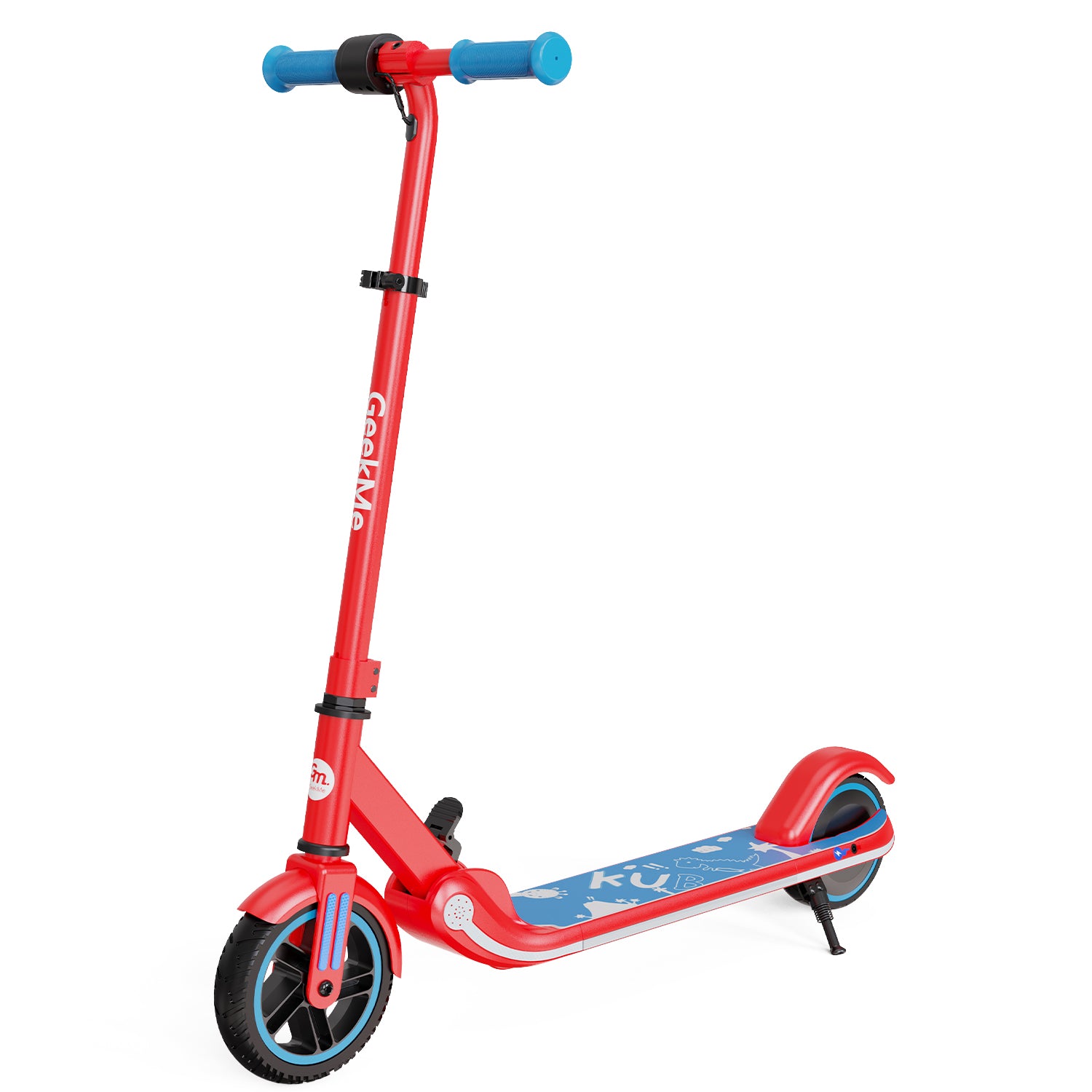

G11 Kids E-Scooter – Technical Specifications

Weight and size

• Own weight / total weight: approx. 6.5 kg / 8.1 kg

• Dimensions (L×W×H): approx. 94.5 × 38.0 × 85.5 cm

• Folded dimensions (L×W×H): approx. 79.5 × 38.0 × 36.0 cm

Driver requirements

• Load capacity: 20–50 kg (44–110 lbs)

• Recommended age: 6–15 years

• Recommended height: 115–145 cm (approx. 3'9"–4'9")

Vehicle parameters

• Driving modes: E, S, N

• Maximum speed: 16 km/h (9.3 mph)

• Typical range: approx. 8 km (5 miles) or approx. 40 minutes driving time

• Maximum gradient: approx. 7%

• Accessible terrain:

  • Flat surfaces, paved roads

  • Obstacles < 1 cm, gaps < 3 cm

• Operating temperature: -10°C to 40°C

• Storage temperature: -20°C to 50°C (recommended: -5°C to 30°C)

• Protection class: IPX4 (splash-proof)

Battery

• Battery type: Lithium-ion battery

• Nominal voltage: 21.6 V

• Maximum charging voltage: 25.2 V

• Battery capacity / energy: 2600 mAh / 56 Wh

• Charging time: approx. 5 hours

• Charging temperature: 0°C to 40°C (recommended: 10°C to 35°C)

• Battery management system: protection against overheating, short circuit, overcurrent and overcharging

charger

• Input voltage: 100–240 V~

• Output voltage: 25.2 V

• Output current: 0.5 A

• Output power: 20.16 W (0.02 kW)

Motor

• Motor power: 200 W (maximum)

• Rated motor power: 150 W

Brakes and tires

• Braking system: Foot brake + optional electric brake (E-Brake)

• Tire type: Tubeless tires made of synthetic rubber

Miscellaneous

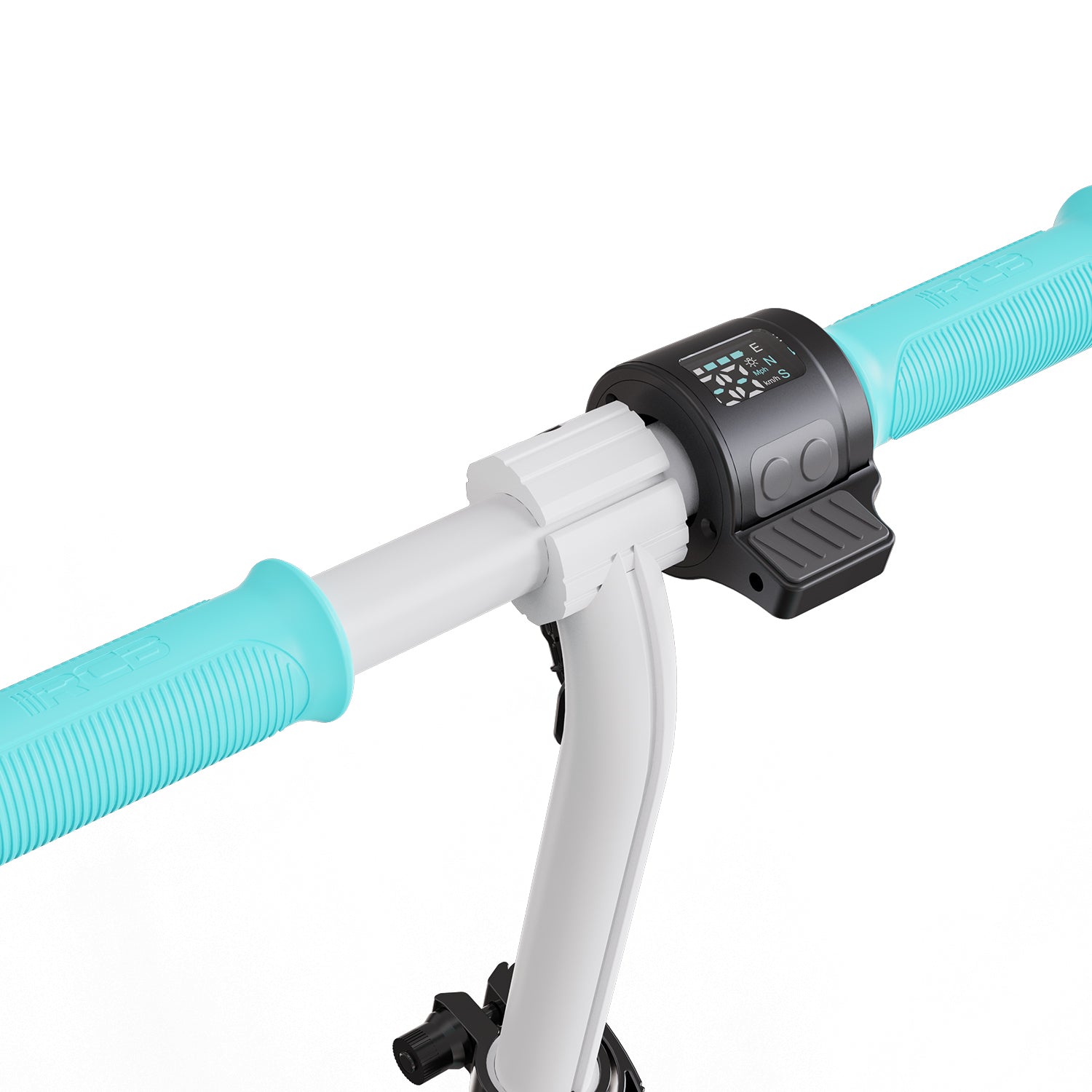

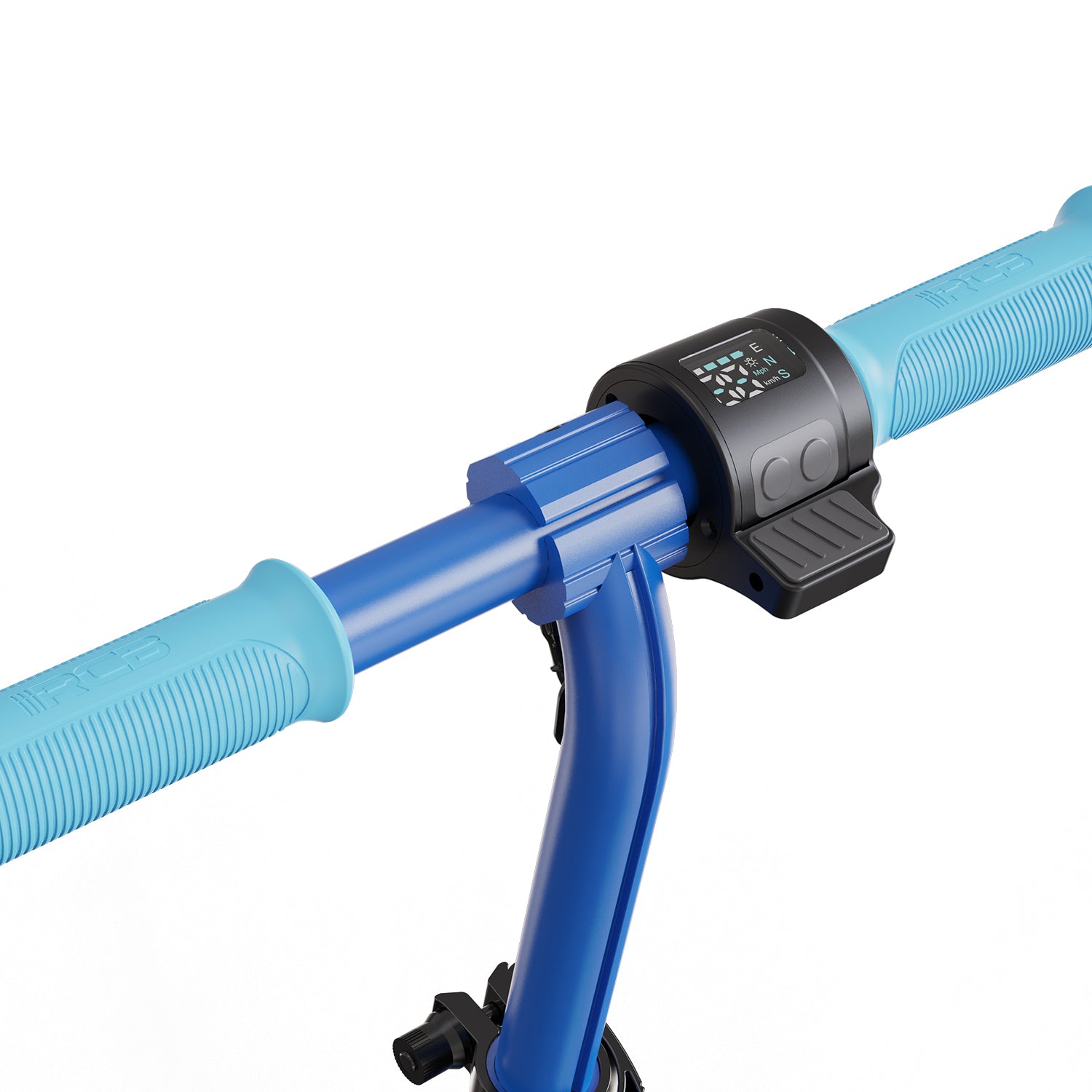

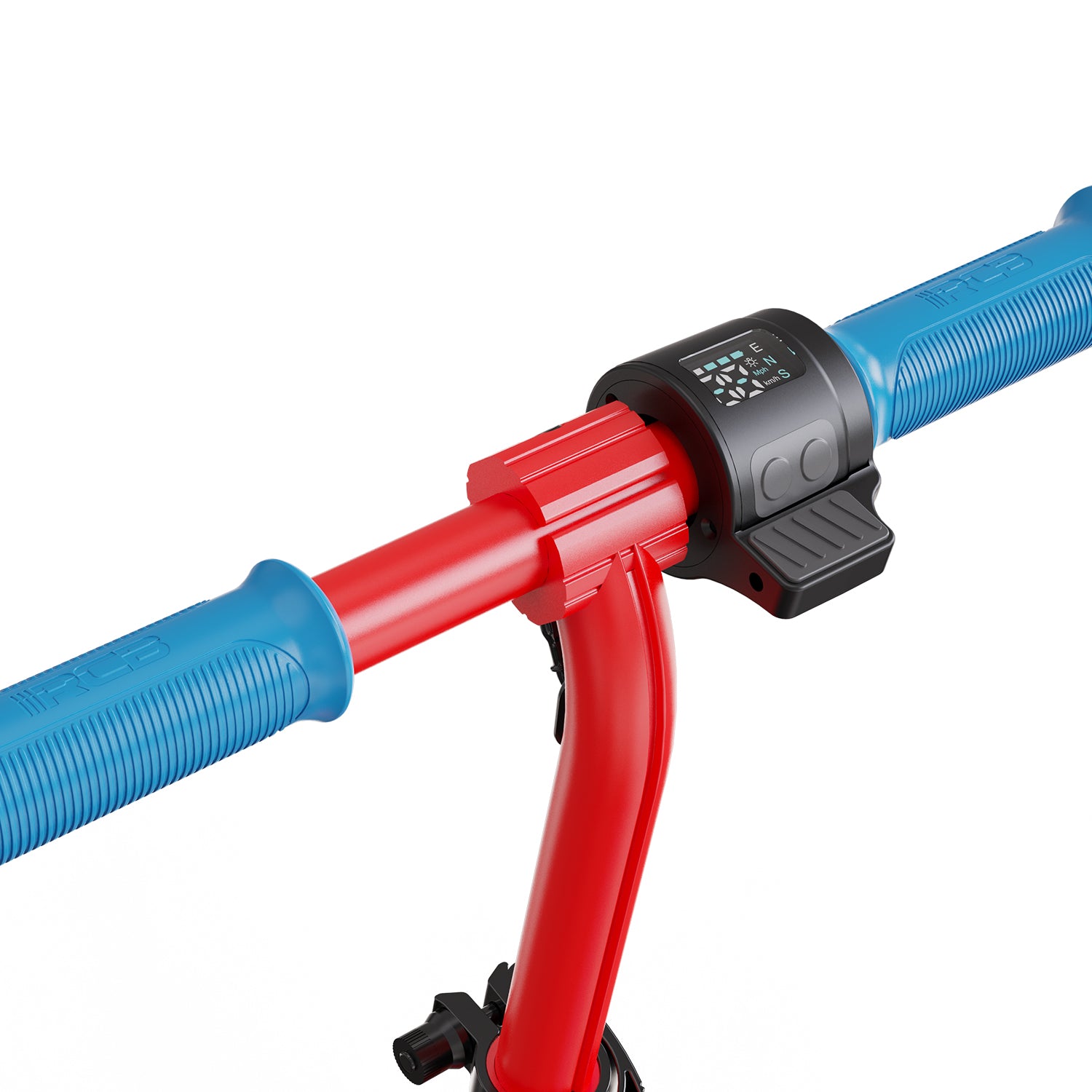

• Battery indicator: RG LED light

• Mode indicator: White LED light

• Frame material: aluminum alloy

• Splash guard material: plastic
