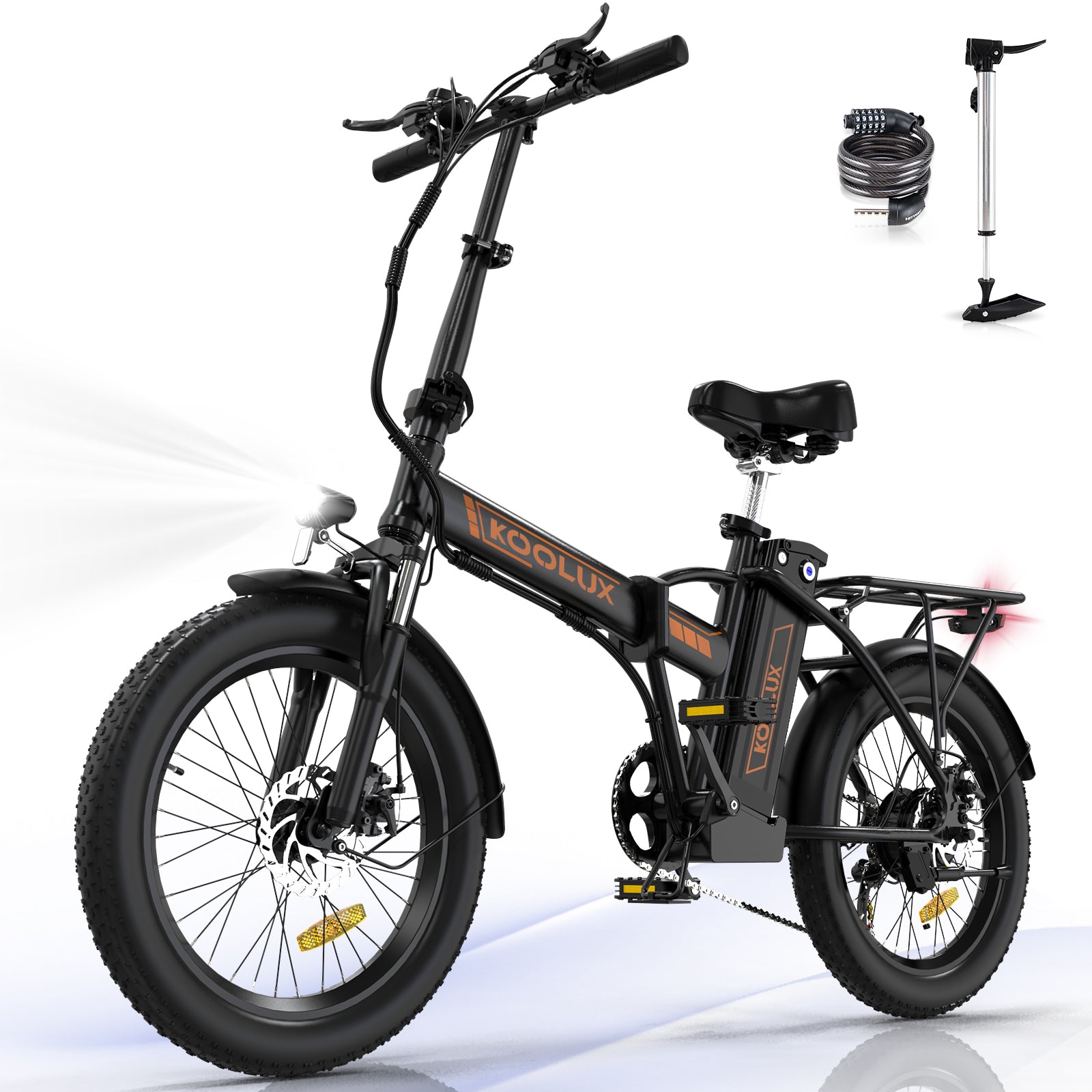

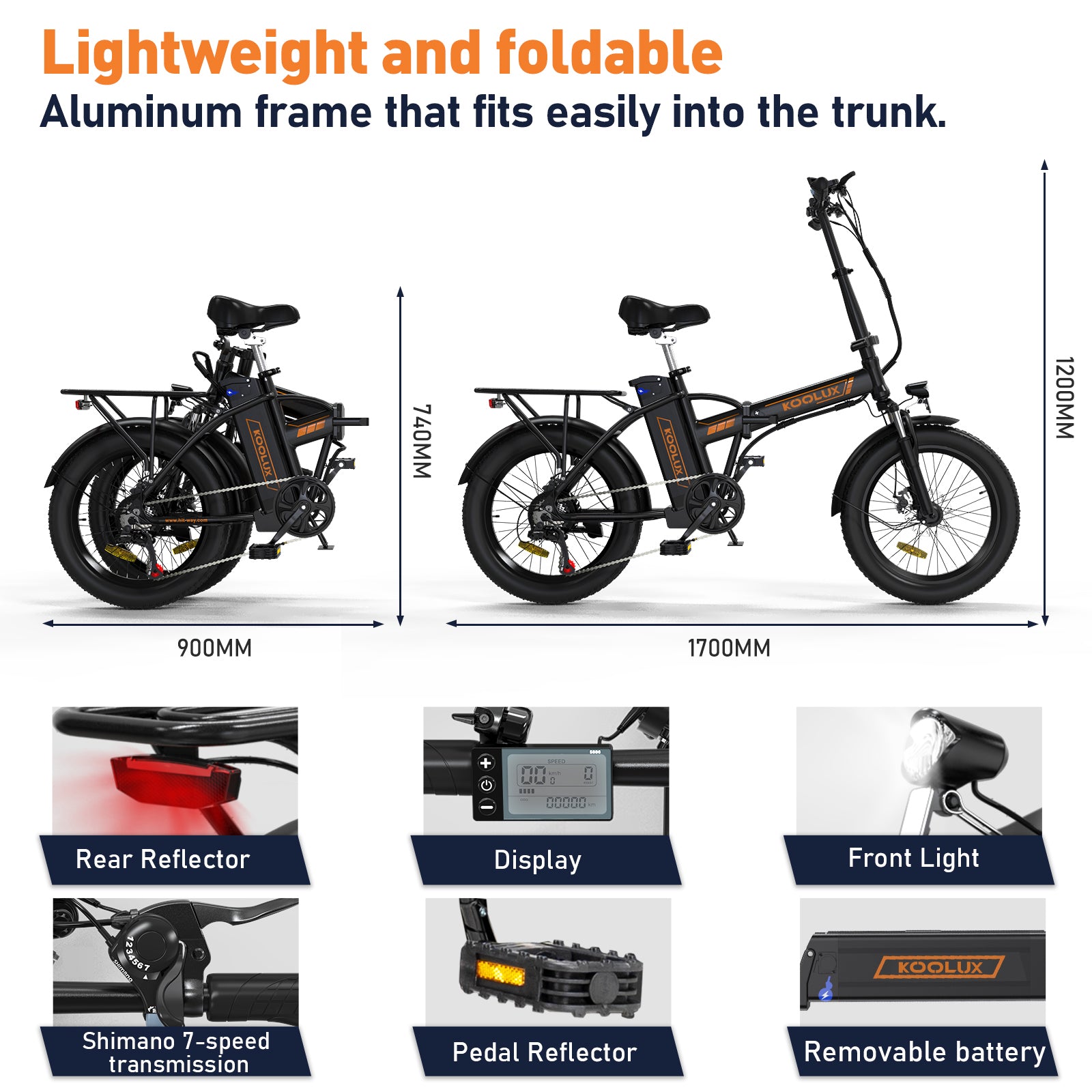

Frame material: aluminum alloy Color: Black Unfolded size: 1700 mm × 560 mm × 1200 mm Folded size: 900 mm × 500 mm × 740 mm Rim type: spoked wheels Tire size: 20 inches Packaging size: 970 mm × 380 mm × 745 mm Gross/Net weight: 31.7 kg / 25.8 kg (69.89 lbs / 56.87 lbs) Maximum load: 120 kg (264.55 lbs) Top speed: 25 km/h (15 mph) Reach: 35–90 km (depending on weight, temperature, road conditions, driving mode, etc.) Example: At 75 kg body weight and 25 °C, the electric mode reaches a range of 35 km) Maximum gradient: 25° Operating temperature: -10 °C to +45 °C Water resistance: IP54
Electrical components

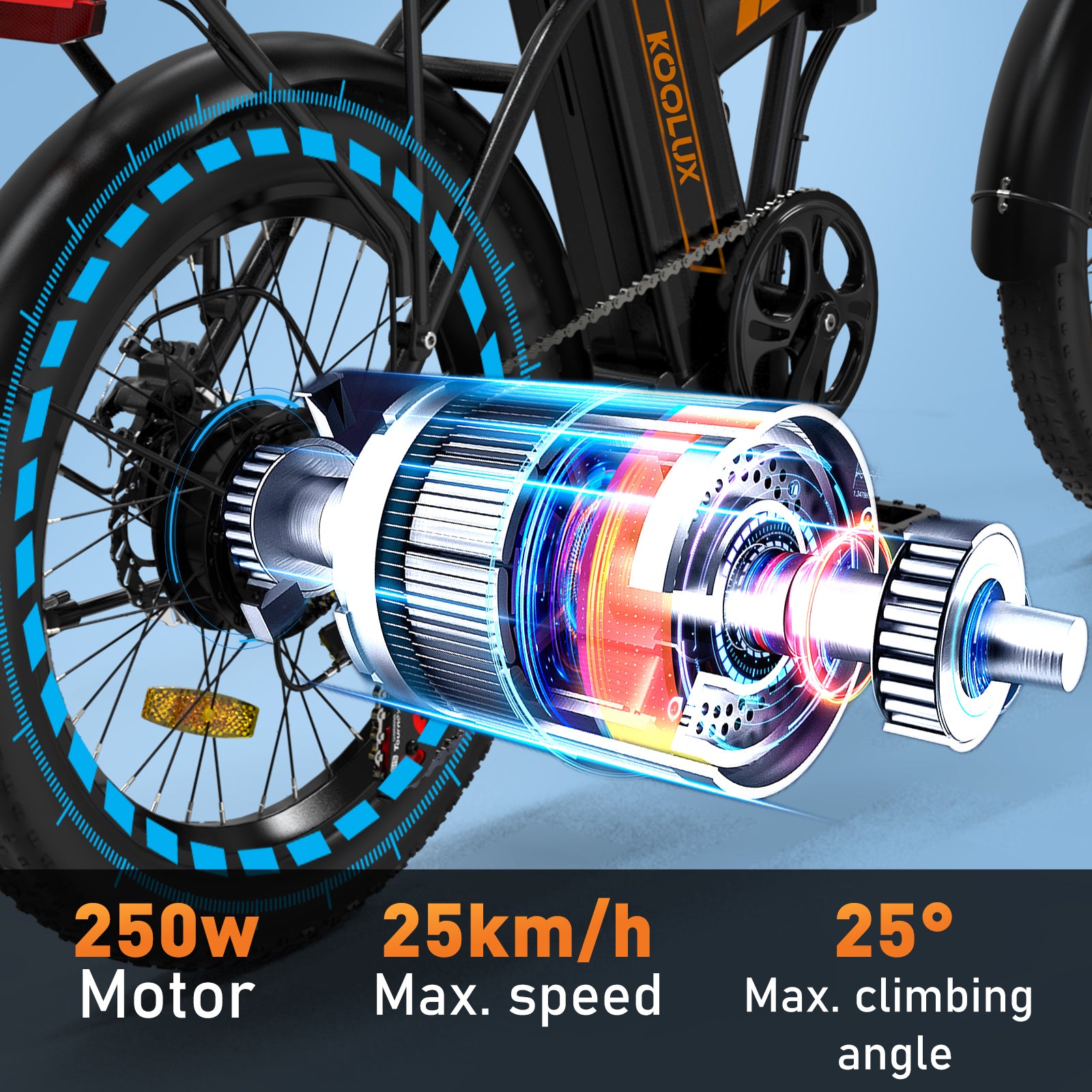

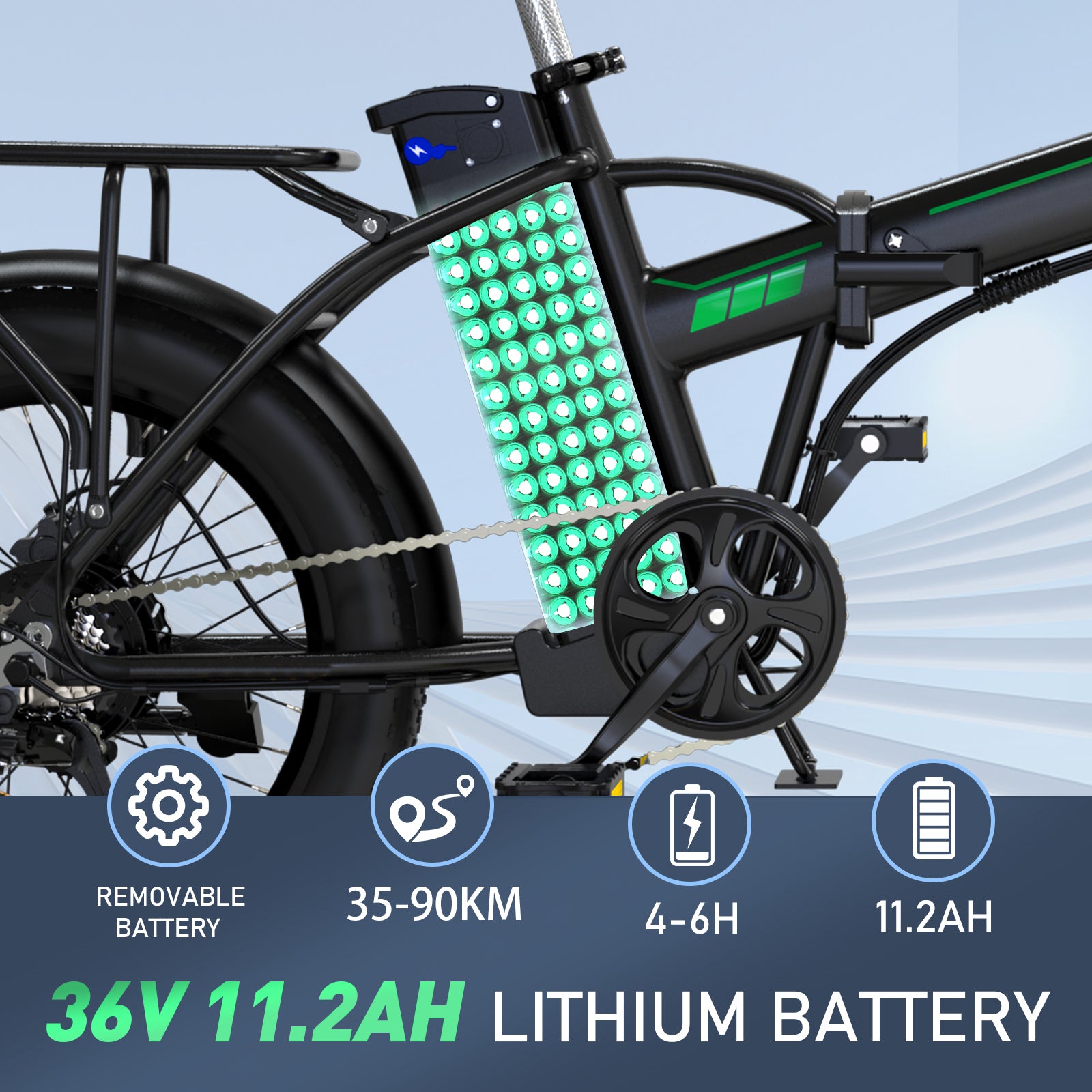

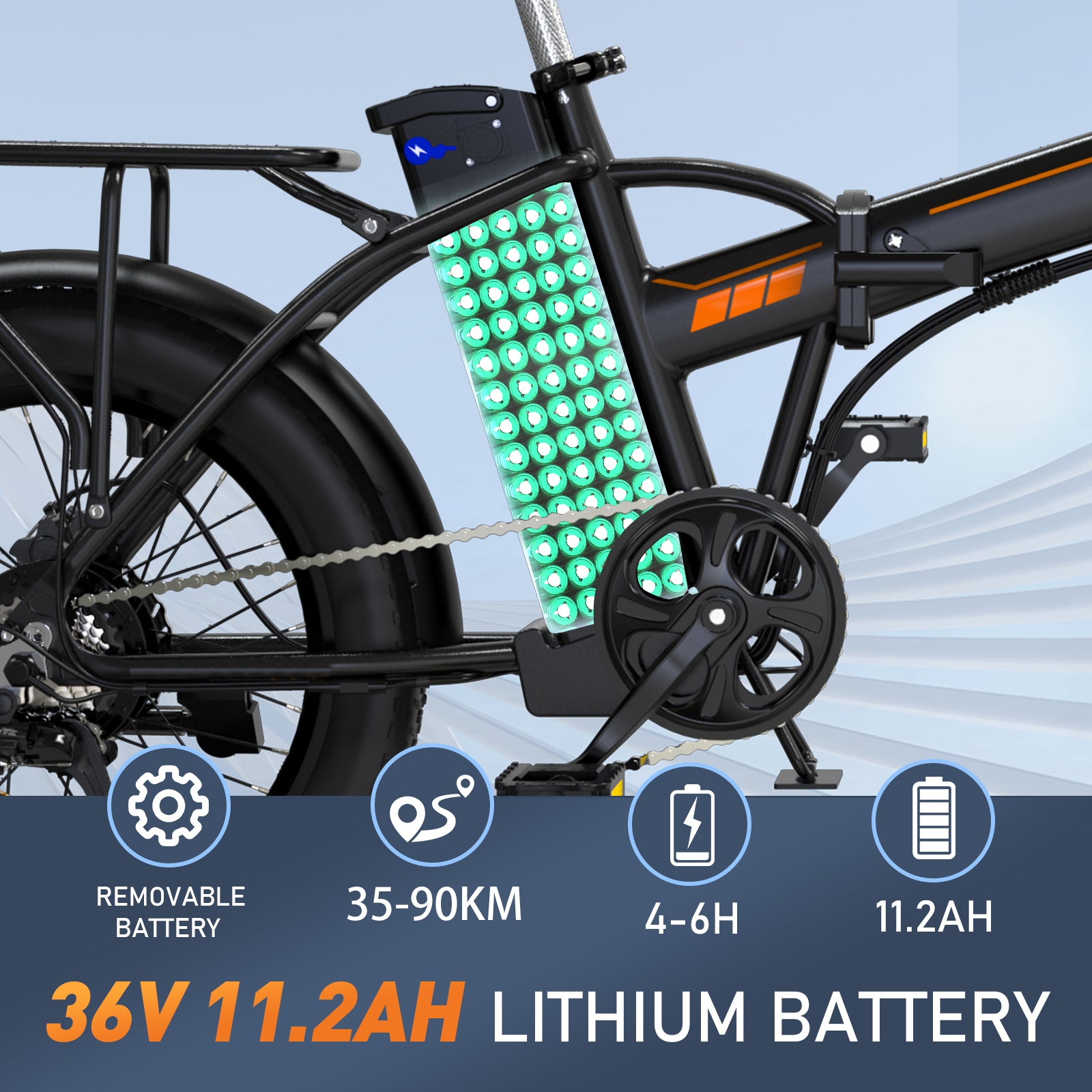

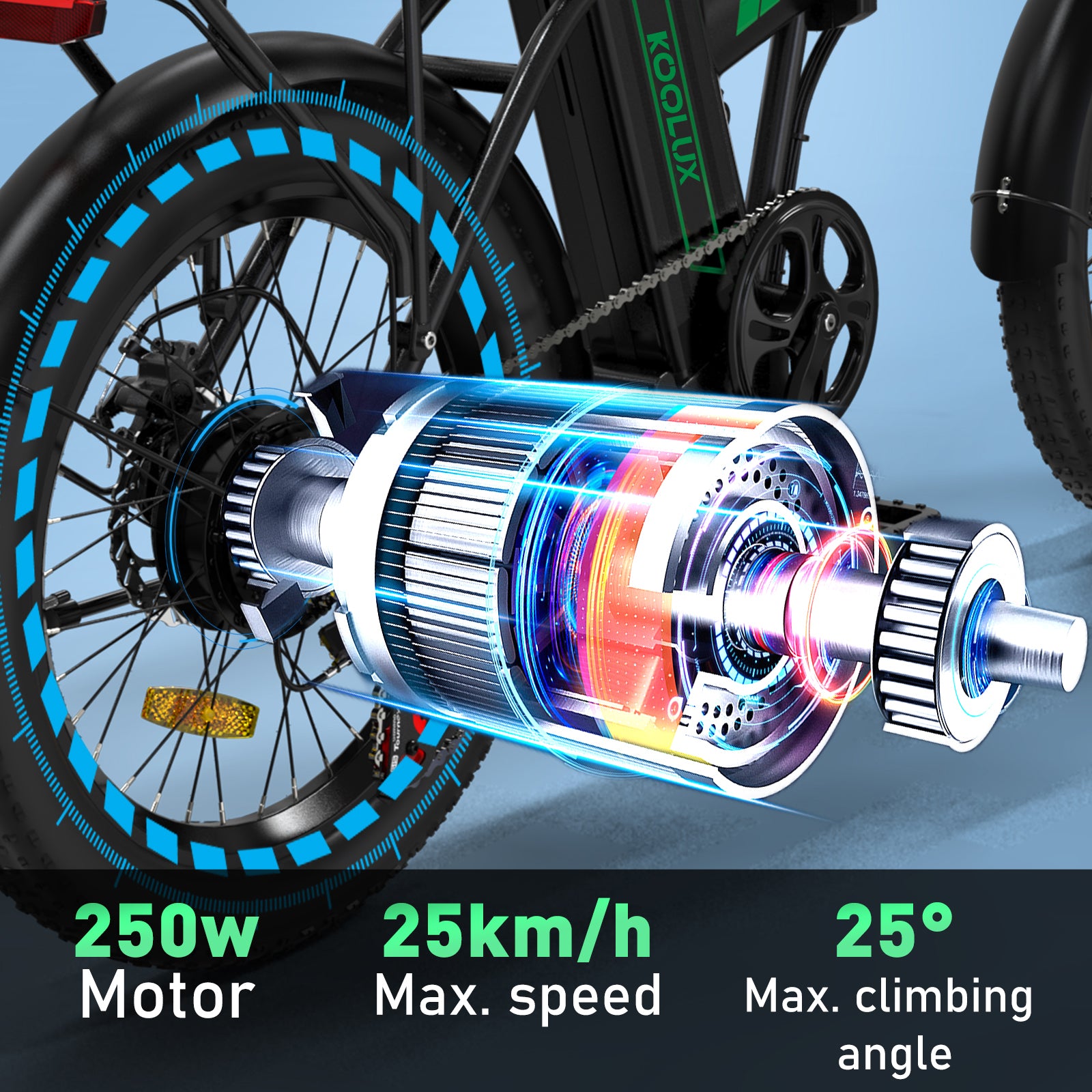

Battery type: 18650 lithium-ion battery Battery capacity: 11.2 Ah Battery voltage: 36 V Motor power: 250 W Motor control: support mode Motor type: 20 inch, high-speed gear/spoke wheel, brushless Idle speed: 430 ±10 rpm Charger output: 42 V / 2.0 A Charger input: 100–240 V, 50/60 Hz, 3.0 A Undervoltage protection: 29 V Overcurrent protection: 15 A ± 1 A Charging time: 5–6 hours
equipment

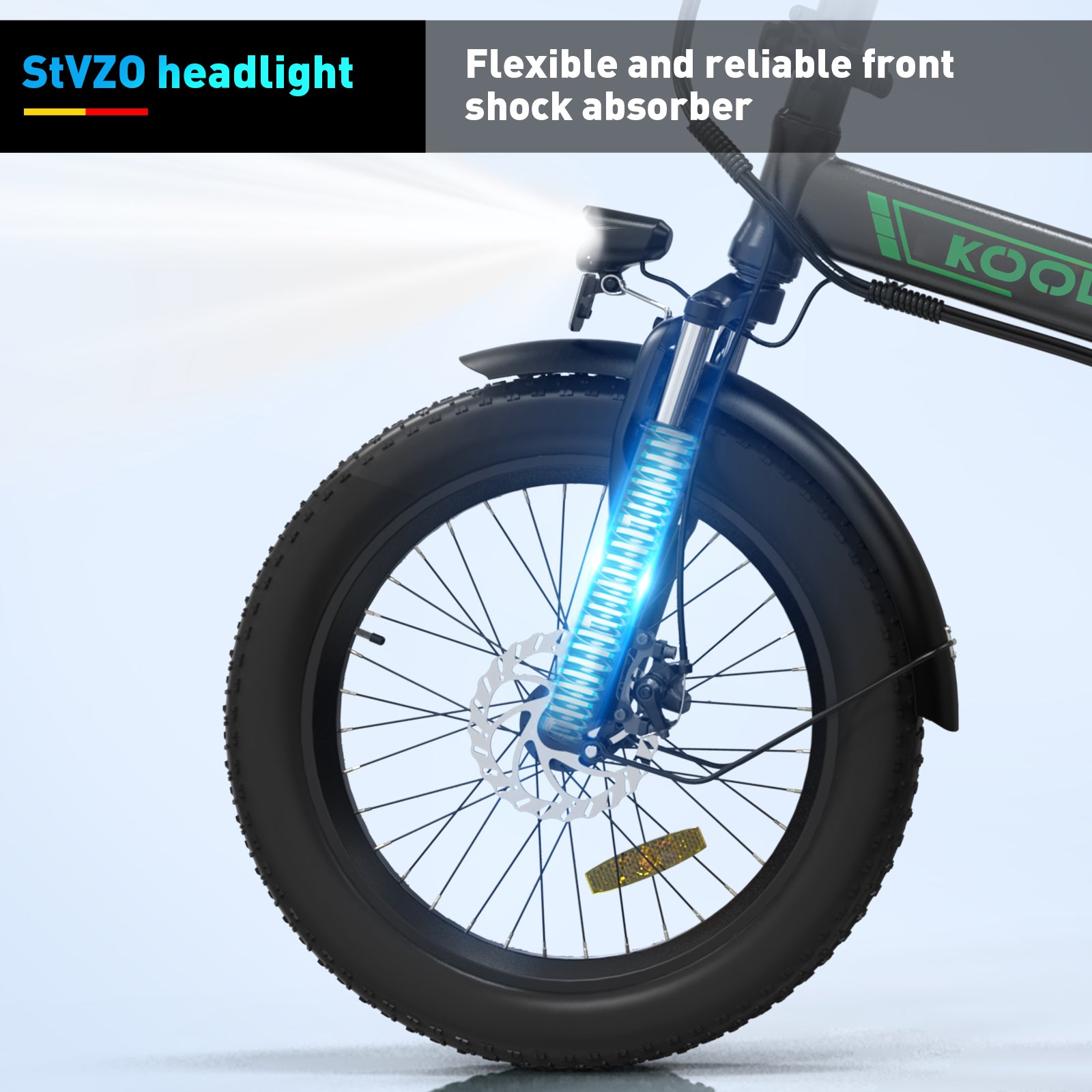

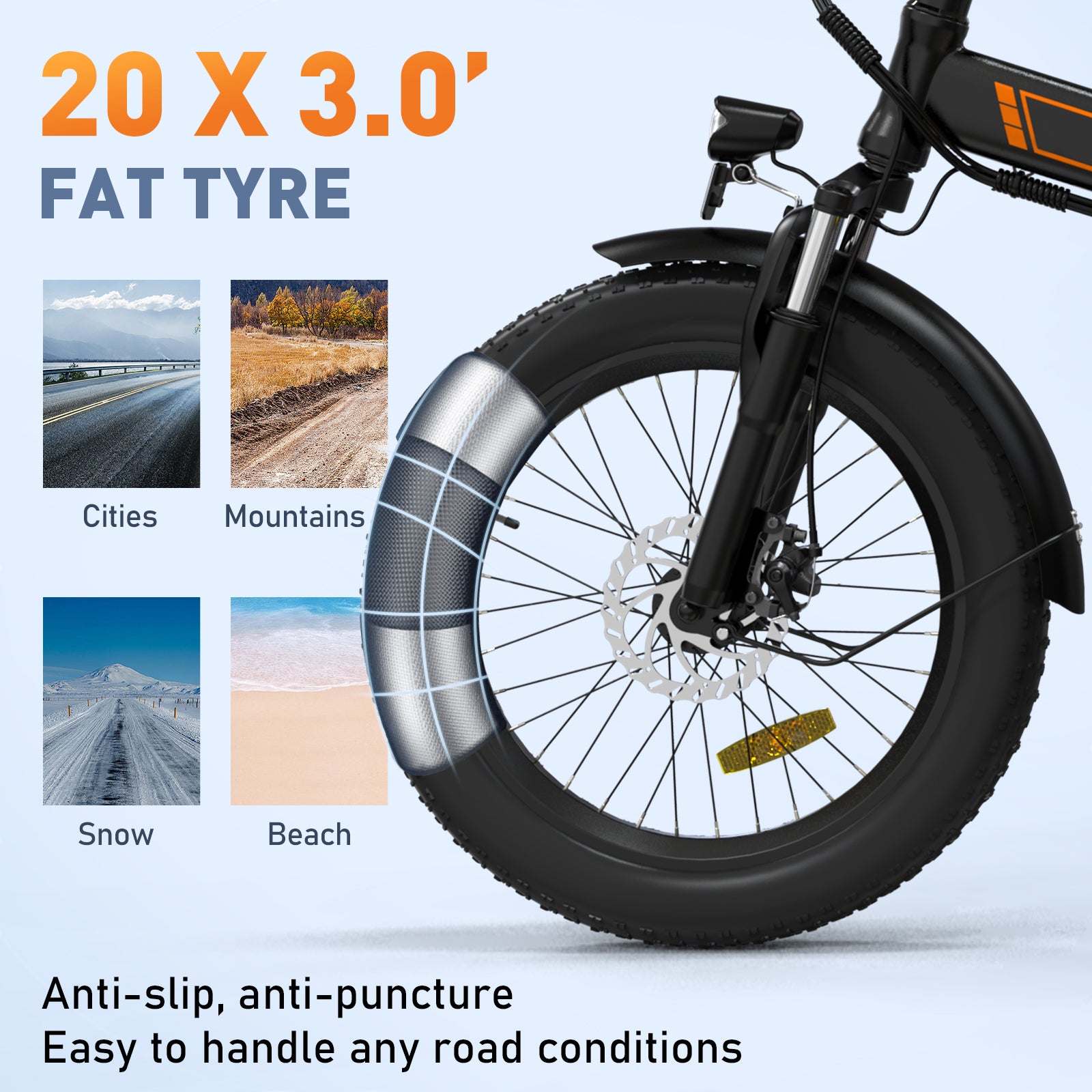

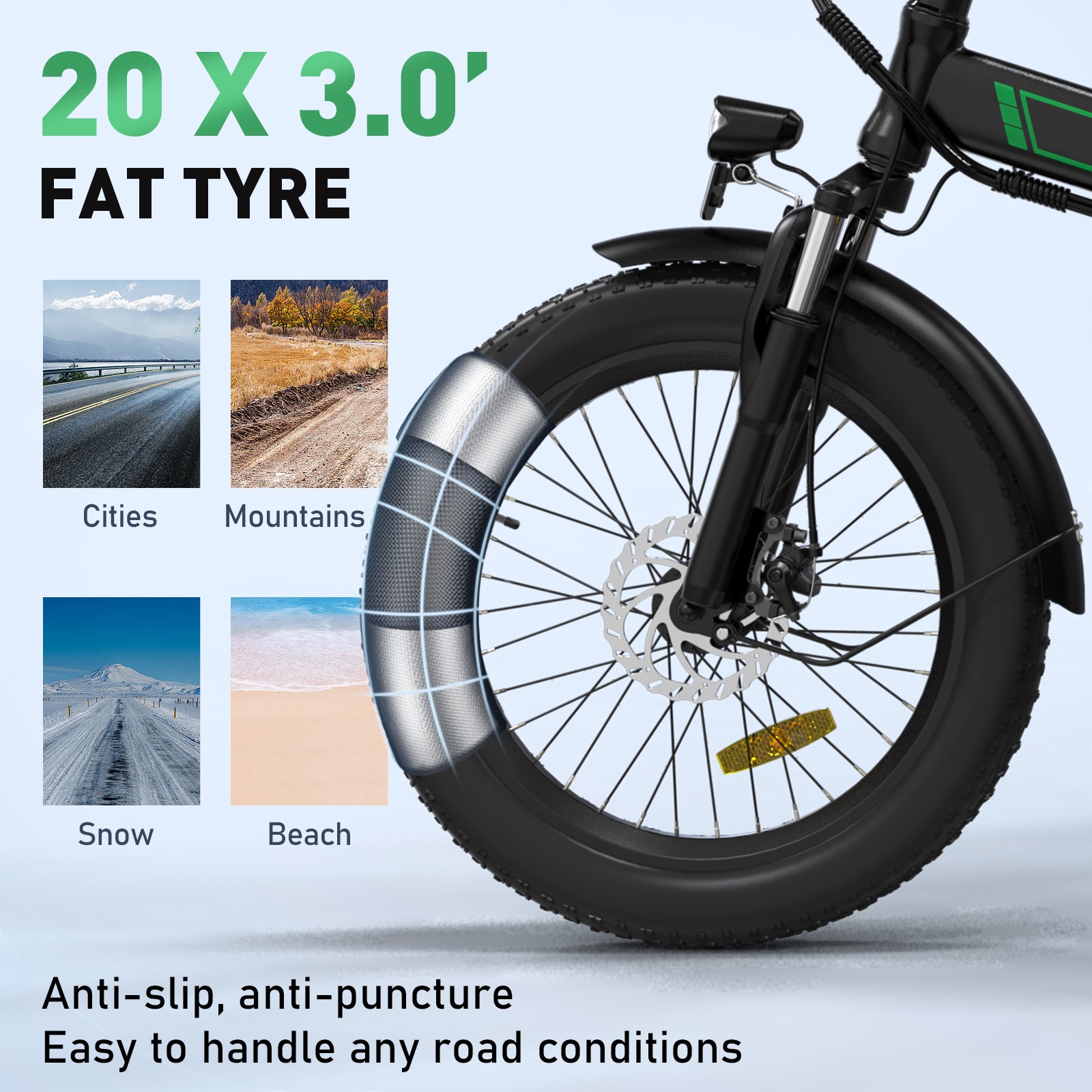

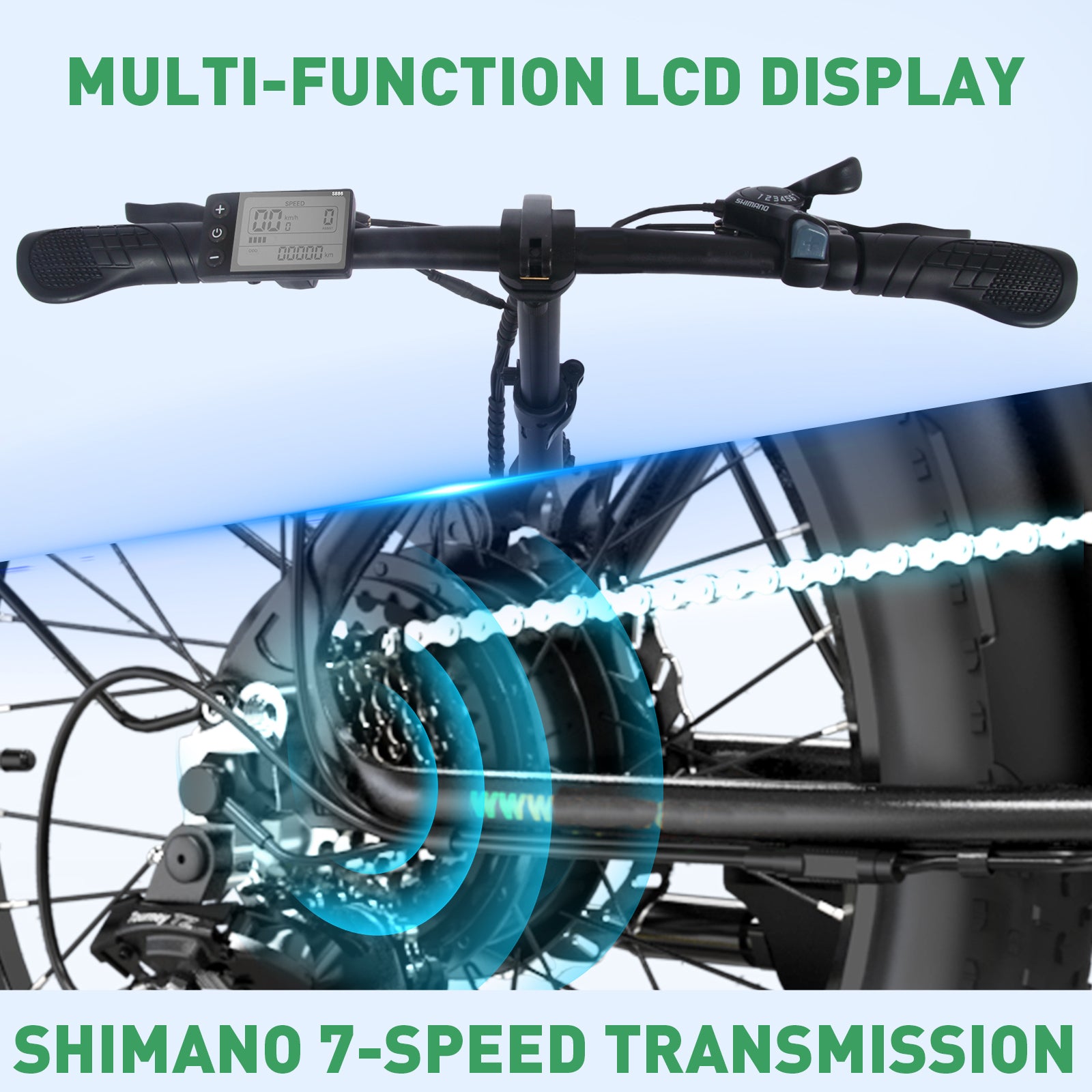

Display: Multifunctional LCD display Front light: Yes Brakes: Front and rear disc brakes Tires: pneumatic tires Tire specification: 20 × 3.0 Valve: AV valve (car valve) Front fork: shock absorber fork Gearshift: 7-speed
