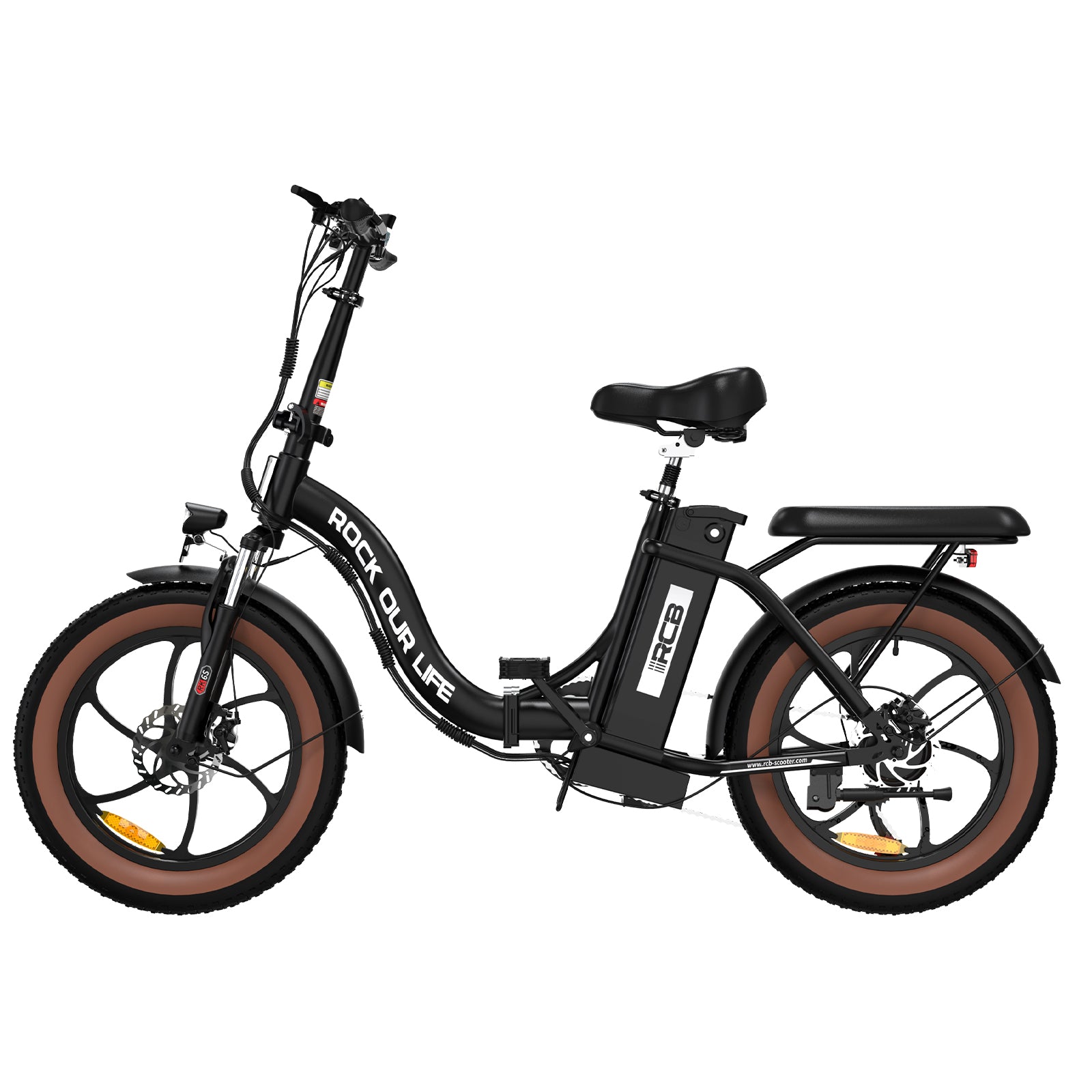

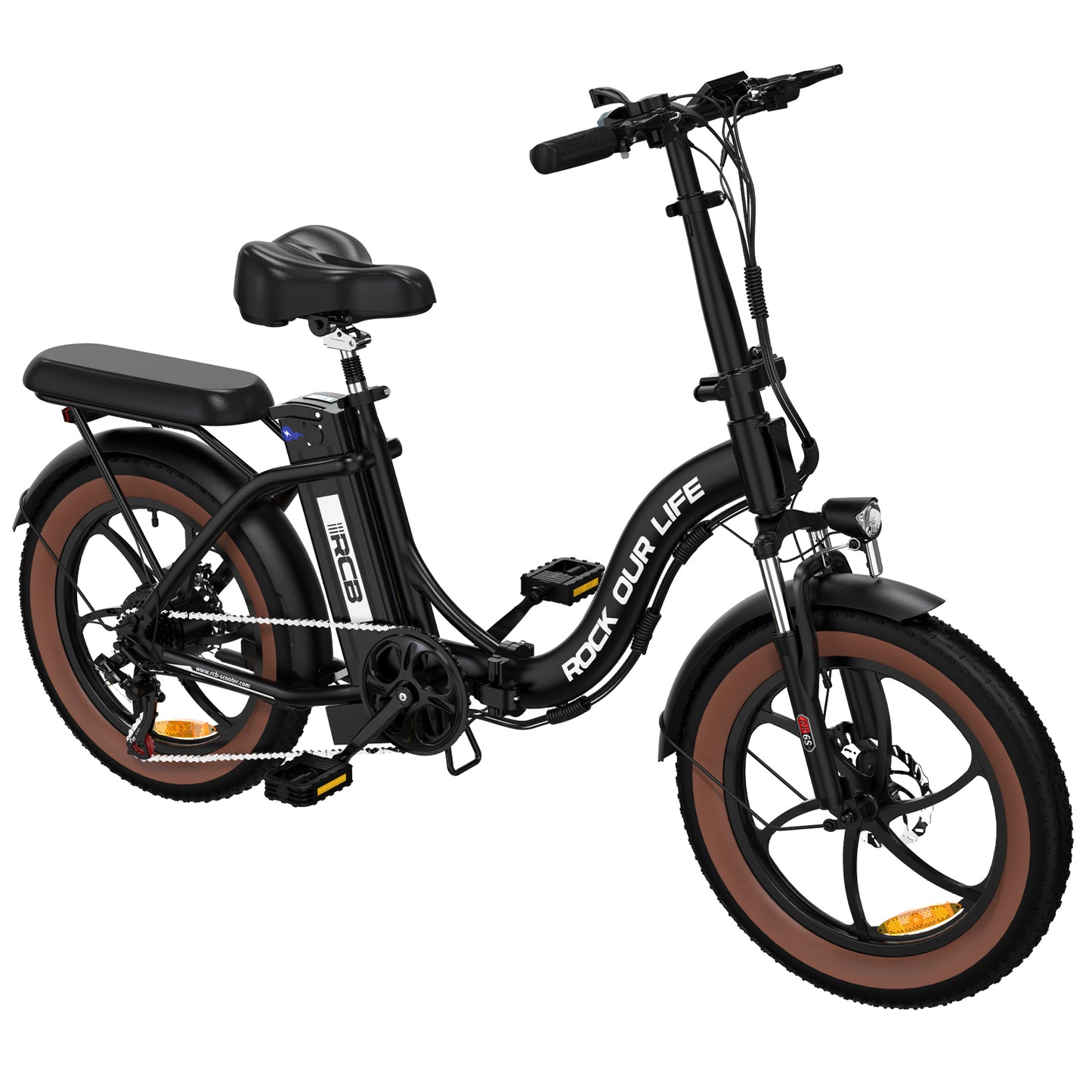

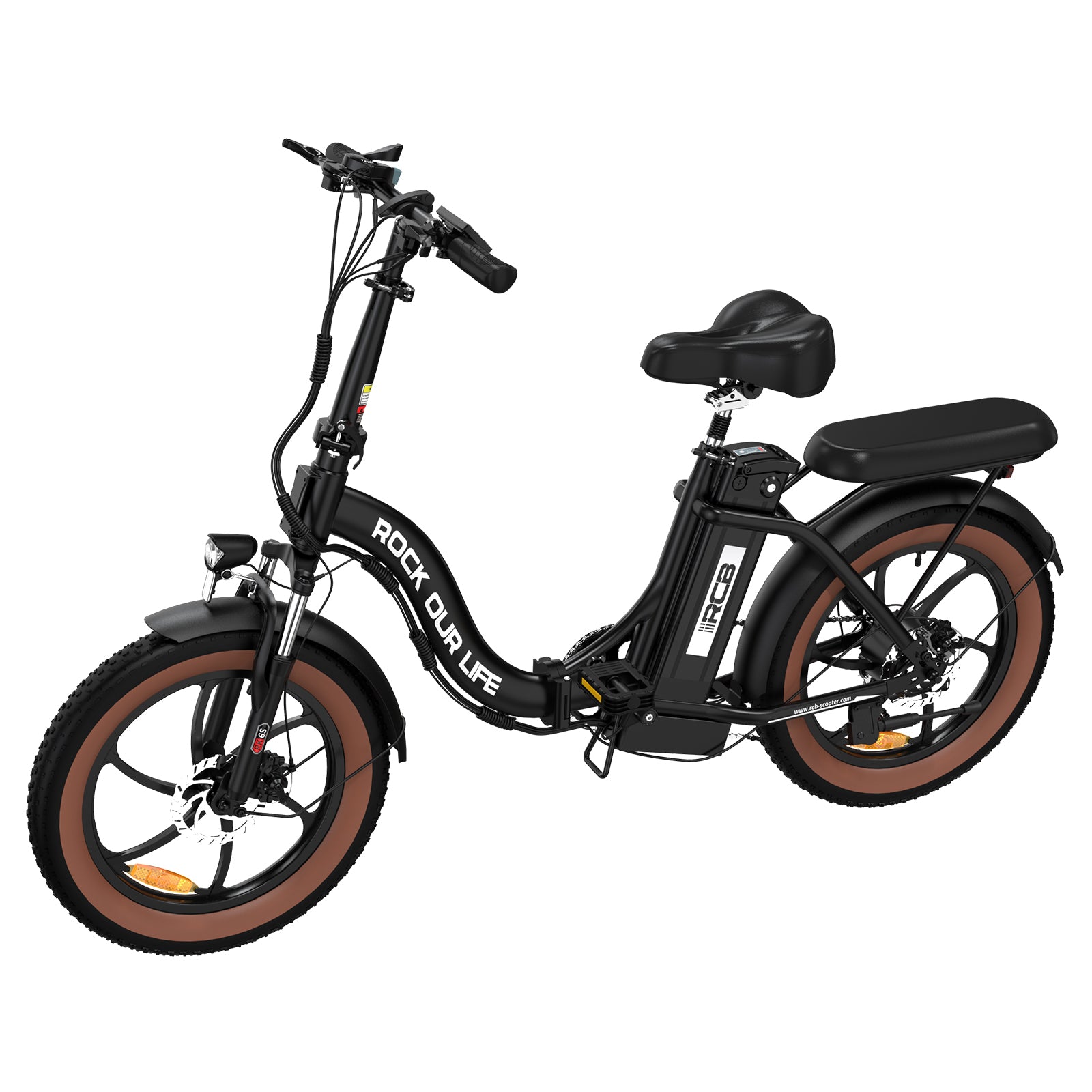

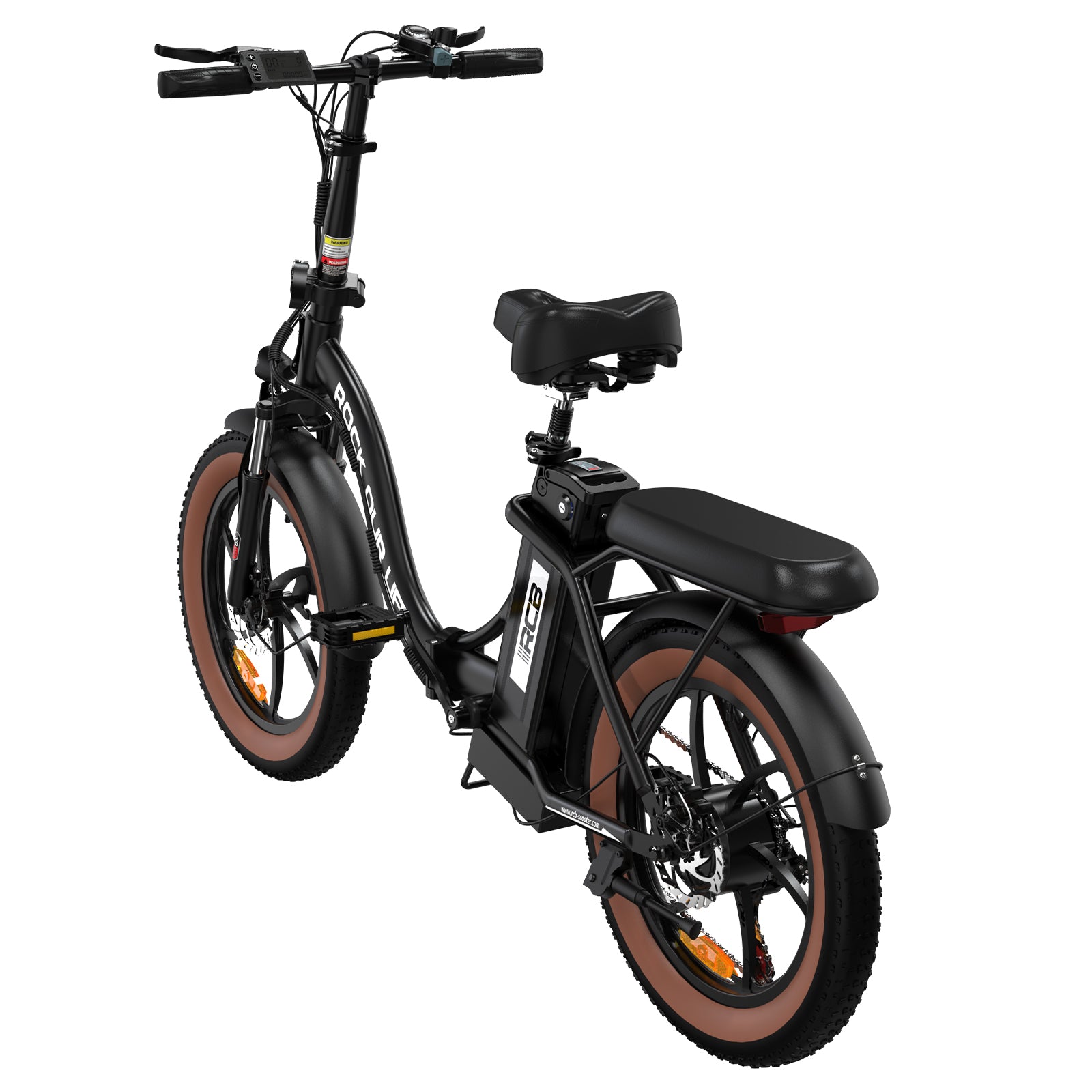

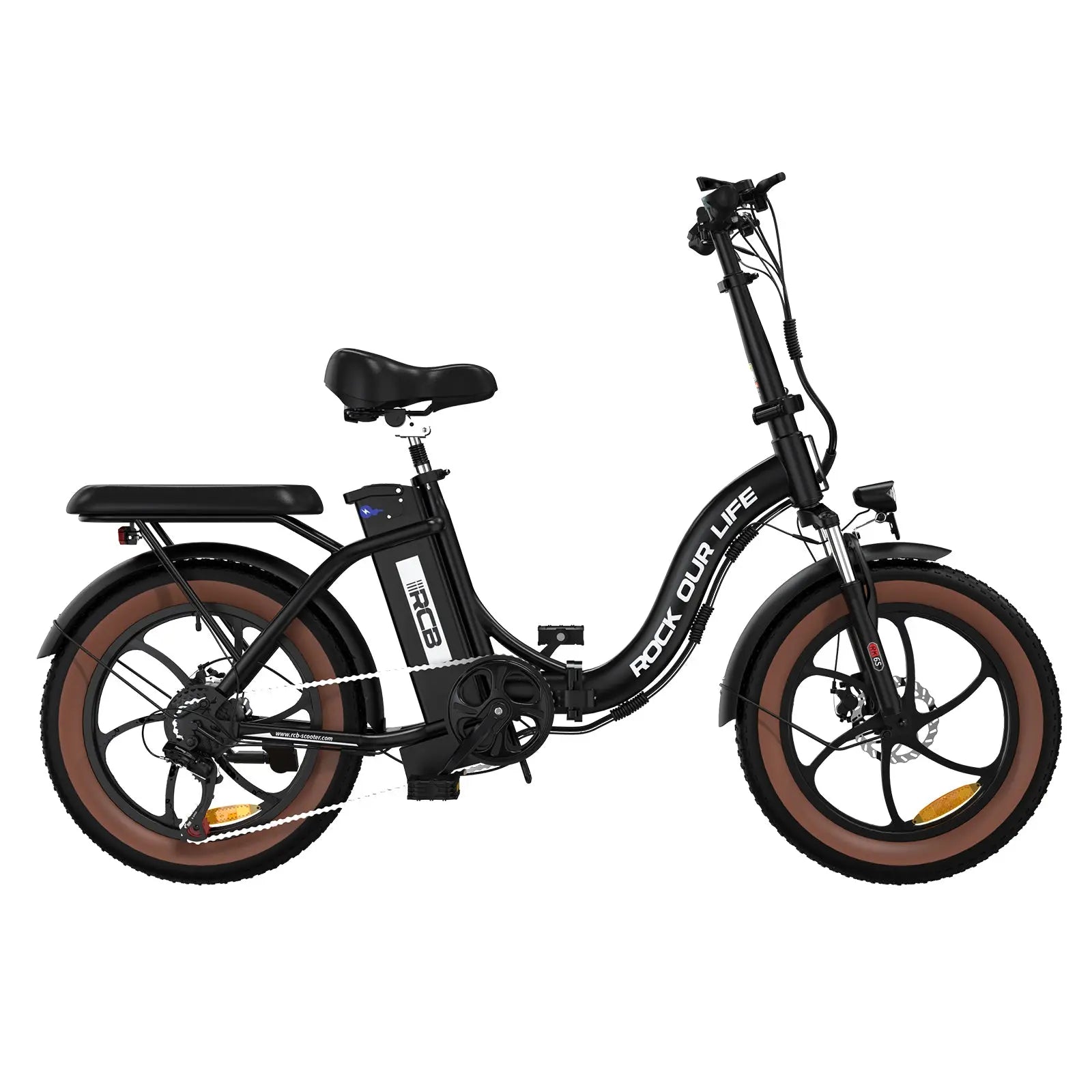

RK6S Folding E-bike

Technical data – standard version

General dimensions

• Frame material: iron frame

• Color: Matte Black

• Unfolded (L×W×H): 1680 × 560 × 1200 mm

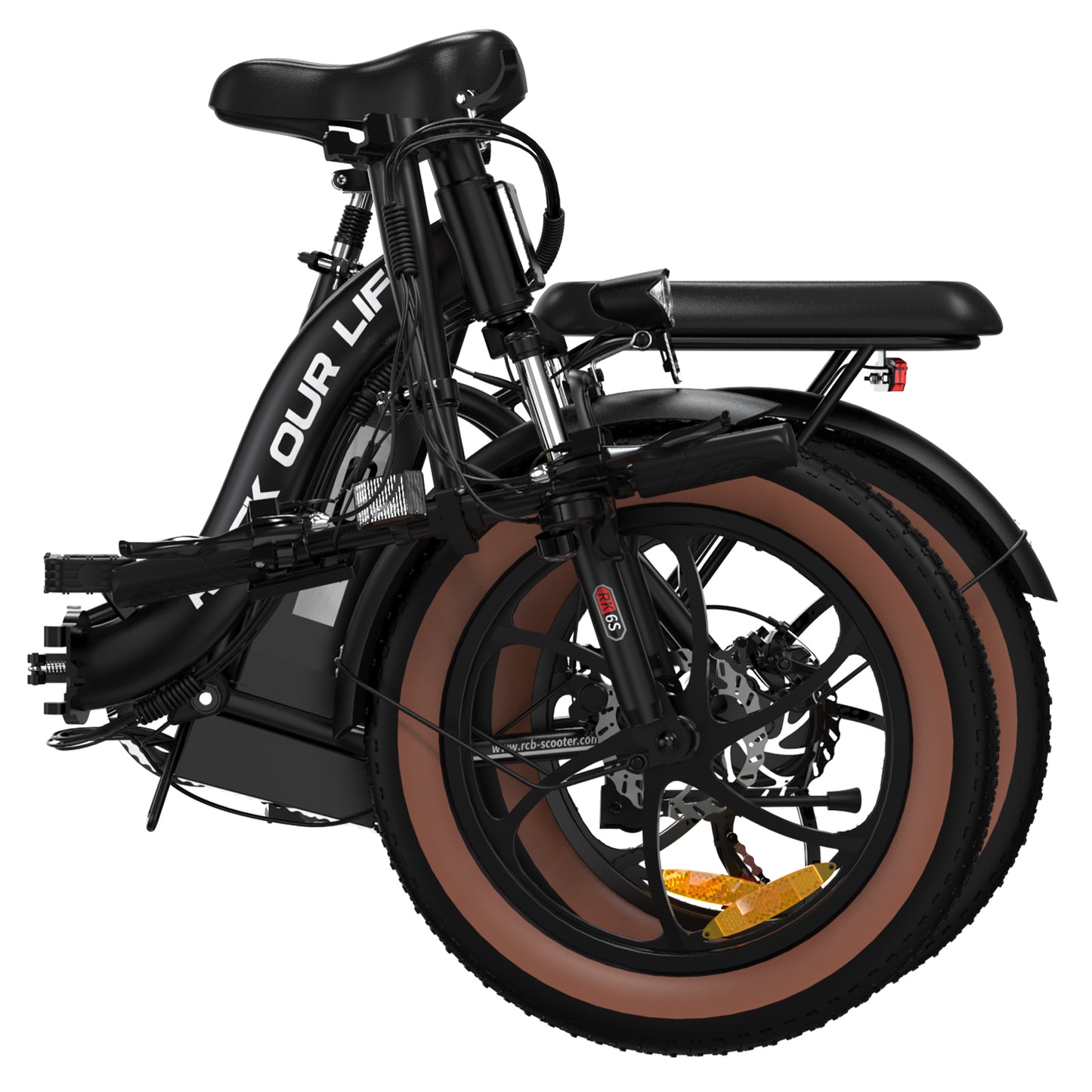

• Folded (L×W×H): 900 × 500 × 740 mm

• Packaging size (L×W×H): 960 × 380 × 745 mm

• Tire type: Integrated tire

• Tire size: 20 inches

• Gross weight / Net weight: 34.4 kg / 27.9 kg (75.8 lbs / 61.5 lbs)

• Load capacity: Max. 120 kg (264.55 lbs)

• Maximum speed: 25 km/h (15 mph)

• Range: 35 – 90 km
  (depending on weight, temperature, driving mode, road conditions, etc.; e.g. at 75 kg and 25 °C: approx. 35 km)

• Max. pitch angle: 25°

• Operating temperature: –10 °C to +45 °C

• Water protection class: IP54

Electrical properties

• Battery type: 18650 lithium-ion battery

• Capacity: 12 Ah

• Voltage: 36 V

• Motor power: 250 W

• Mode: Support mode (Pedal Assist)

• Motor type: 20-inch high-speed/brushless motor with one drive wheel

• Idle speed: 430 ±10 rpm

• Charger output: 42 V / 2.0 A

• Charger input: 100–240 V, 50/60 Hz, 3.0 A

• Undervoltage protection: 29 V

• Overcurrent protection: 15 A ±1 A

• Charging time: 6.5 – 7 hours

Components and features

• Display: Multifunctional LCD panel

• Light: Front included

• Brakes: Disc brakes front and rear

• Tire type: pneumatic tire

• Tire size: 20" × 3.0"

• Valve: AV (car valve)

• Front fork: shock absorber fork

• Gearshift: 7-speed (7S)
